Centrifugal Pump Test Apparatus Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14124

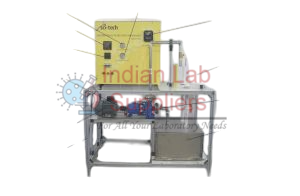

The Centrifugal Pump Test Apparatus is designed to enable students to study the operation and performance characteristics of a typical centrifugal pump, which is widely used in industrial, domestic, and irrigation applications. The pump increases the potential energy of a liquid by the action of an impeller rotating within a volute casing.

The module features a variable speed centrifugal pump driven by a DC shunt wound motor. This motor is suspended, allowing the driving torque to be measured directly using a torque wrench. Motor speed and power consumption are displayed digitally. Bourdon tube pressure gauges are mounted at the inlet and exit to measure the head increase across the pump. The flow rate is measured volumetrically using the measuring tank of the hydraulic bench and can be cross-checked with an independent water flow meter in the discharge line. The unit is designed to be mobile and all components are corrosion resistant.

Technical Specifications and Components (Inferred)

Feature / Component	Parameter / Specification	Detail / Value
Pump Type	Configuration	Variable Speed Centrifugal Pump assembly.
Motor	Type and Control	DC Shunt Wound Motor of adjustable speed.
Torque Measurement	Device	Torque wrench (Motor is suspended for direct torque determination).
Head Measurement	Gauges	Bourdon tube pressure gauges at inlet and exit.
Discharge Control	Device	Flow control valve (upstream of the discharge pipe).
Flow Measurement	Primary Method	Measuring tank of the Hydraulic Bench.
Flow Measurement	Secondary Method	Water flow meter fixed in the discharge.
Instrumentation	Display	Digital display for motor speed and power consumption.
Structure	Features	Robust and mobile frame, corrosion resistant materials.

Experimental Objectives (Inferred)

Experiment	Key Measurement / Investigation	Hydraulic Principle
Performance Characteristics	Plotting Head (H) versus Discharge (Q) curves.	Determining the total energy imparted by the pump at various flow rates.
Power and Efficiency	Calculating Input Power, Hydraulic Output Power, and Overall Efficiency (eta).	Relating electrical/mechanical input to hydraulic output.
Speed Effects	Studying the effect of varying pump speed on Head, Power, and Efficiency.	Verification of pump affinity laws (H is proportional to N squared, Q is proportional to N, P is proportional to N cubed).
Torque Measurement	Direct measurement of driving torque at various operating points.	Understanding the mechanical input required by the pump.
