Plunger Pump Demo Apparatus Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14192

Overview

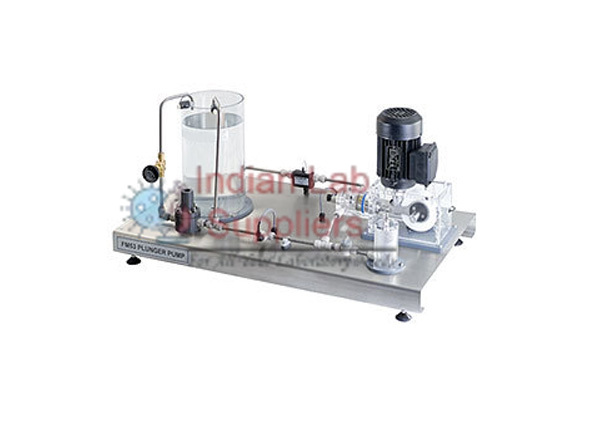

The Plunger Pump Demonstration Apparatus is a compact and comprehensive unit designed to study the principles, operation, and performance characteristics of a reciprocating plunger-type positive displacement pump.

It features a motor-driven plunger pump mounted on a stainless steel base, complete with a water reservoir, pulsation damper, control valves, and interconnecting pipework — forming a self-contained circulating system.

A transparent acrylic pump head and components allow direct observation of the suction and delivery strokes, fluid displacement, and pulsation effects. The system includes sprung and needle loading valves to demonstrate different flow and pressure characteristics, while a pressure relief valve ensures safe operation.

For advanced study and data analysis, the apparatus is equipped with electronic sensors for measuring cylinder pressure, plunger position, outlet pressure, and cumulative flow, and can be connected to a PC via an interface console (optional). The dedicated software provides tools for data acquisition, processing, and real-time graphical display.

Key Features

• Self-contained plunger pump system with water reservoir and closed circulation loop.
• Transparent acrylic components for clear visualization of pump operation.
• Motor-driven variable-speed plunger pump, adjustable up to 60 strokes/min.
• Sprung loading valve and needle valve to study different outlet characteristics.
• Pressure relief valve for operator and equipment protection.
• Pulsation damper with isolation valve for studying damping effects.
• Electronic sensors for measuring:
• Instantaneous cylinder pressure
• Plunger displacement
• Outlet pressure
• Cumulative flow
• PC connectivity (via optional interface console) for data logging and analysis.
• Educational software for experiment setup, calibration, operation, and analysis.
• Stainless steel base for durability and corrosion resistance.
• Comprehensive instructional manual with theory, experimental procedures, and Q&A exercises.

Technical Specifications

Instrumentation & Data Acquisition

• Cylinder Pressure Sensor – monitors instantaneous pressure variations during the suction and discharge strokes.
• Plunger Position Sensor – tracks displacement and stroke timing.
• Outlet Pressure Sensor – records delivery pressure at the pump outlet.
• Flow Sensor – measures cumulative discharge volume for efficiency studies.
• Pulsation Damper – reduces flow fluctuations; can be isolated to study its effect.
• Optional Computer Interface – enables data logging, P–V diagram plotting, and dynamic system analysis.

Software Features (Optional)

• Full setup and calibration instructions.
• Real-time data acquisition and graphical display.
• Automatic logging and processing of measured parameters.
• Display of instantaneous and average values for flow, pressure, and plunger displacement.
• Ability to generate P–V diagrams and system response curves.
• Student exercises, theory, and analysis tools integrated into the software.
• Compatible with modern Windows operating systems.

Experiments

1. Measurement of plunger displacement.
2. Observation of cylinder pressure variation during a cycle.
3. Recording of pump outlet pressure.
4. P–V diagram generation for the pumping cycle.
5. Study of loading characteristics using a sprung valve or needle valve.
6. Investigation of the effect of outlet valve adjustment on pump performance.
7. Analysis of pulsation damping and its impact on flow smoothness and pressure stability.

Educational Objectives

• Understand the operating principle of a plunger (reciprocating) pump.
• Measure and analyze pressure, flow rate, and plunger displacement.
• Develop P–V diagrams and relate them to energy transfer.
• Study flow pulsations and damping effects.
• Compare performance under different outlet valve conditions.
• Reinforce concepts of positive displacement pumping and efficiency.

System Configuration

• Stainless steel base frame with transparent acrylic components.
• Plunger pump, water reservoir, pulsation damper, and pipework integrated.
• Variable-speed drive with control panel.
• Sensors connected to a data interface (optional).
• Relief, loading, and needle valves included.

Safety Features

• Pressure relief valve for overpressure protection.
• Transparent enclosure for visibility and operator safety.
• Electrically isolated drive and data interface.
• Controlled speed variation to prevent overloading.

Required Services

• Electrical Supply: 220–240 V AC, 1 Phase, 50 Hz

Applications

• Teaching and research in Fluid Mechanics and Hydraulic Machines.
• Demonstrations of positive displacement pump characteristics.
• Laboratory work in Mechanical, Chemical, and Civil Engineering programs.
• Suitable for undergraduate instruction and vocational training.
