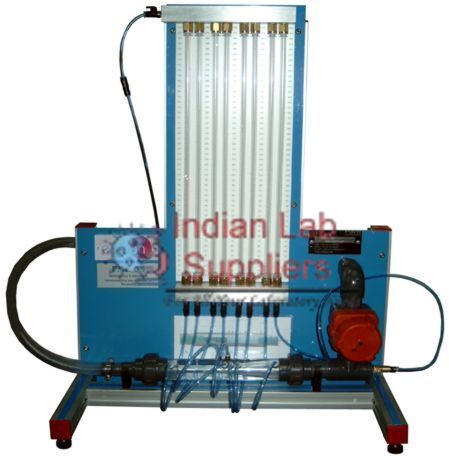

Apparatus for Porous Bed in Venturi Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14161

Overview

The Apparatus for Study of Porous Beds in Venturi Tubes is designed to investigate fluid behavior through Venturi sections and the effect of porous media on pressure and velocity distribution.
It demonstrates Bernoulli’s theorem, flow through convergent-divergent geometries, and head losses within porous beds of various grain sizes.

The unit features a transparent Venturi conduit with multiple pressure tapping points, enabling direct observation and precise measurement of static and total pressure distributions along the flow path.
Three interchangeable Venturi tubes, each containing different granular porous beds, allow comparative studies under various conditions.
The apparatus integrates with a Hydraulic Bench for controlled water flow and includes a Pitot tube for dynamic pressure measurement.

Key Features

Transparent circular-section Venturi conduit with pressure tapping points
Three porous bed Venturi tubes with varying sand grain diameters
Pitot tube probe for measuring dynamic pressure along the section
Convergent and divergent configurations easily interchangeable
Adjustable flow rate via control valve and compatible with hydraulic bench
Manometric tubes for visual display of pressure differences
Rigid anodized aluminum frame with painted steel panels
Quick and easy coupling system for assembly and maintenance

Experimental Capabilities

Demonstration of Bernoulli’s theorem in both convergent–divergent and divergent–convergent configurations
Measurement of static and total pressure distribution along Venturi tubes
Determination of the throat section of a Venturi tube
Observation of head losses through porous beds of different granular sizes
Study of pressure–velocity relationships and energy conversion in flowing fluids

Technical Specifications

Parameter	Specification
Manometer Range	0–300 mm of water
Number of Manometric Tubes	8
Upstream Throat Diameter	25 mm
Convergence Angle (Upstream)	10°
Divergence Angle (Downstream)	21°
Venturi Tube Types	3 interchangeable porous bed tubes
Porous Bed Grain Sizes	1.0–1.5 mm, 2.5–3.5 mm, 5.5–7.0 mm
Flow Measurement	Pitot tube for dynamic pressure measurement
Structure	Anodized aluminum frame with painted steel panels
Connection System	Quick-coupling type for easy assembly
Compatibility	Operates with standard Hydraulics Bench
Overall Dimensions (L × W)	1.5 × 0.75 m
Weight	Approx. as per model (varies by configuration)

Utilities Required

Service	Requirement
Water Supply & Drain	Continuous clean water flow
Electrical Supply	220 V AC, 50 Hz, single phase, 0.5 kW
Floor Area	1.5 m × 0.75 m
