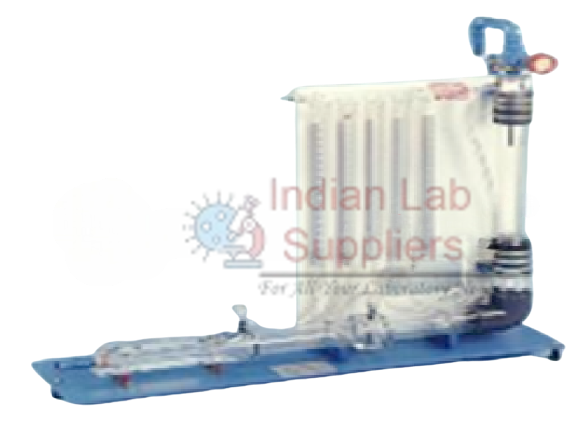

The Flow Measurement Apparatus is
designed to demonstrate and compare different methods of measuring flow
rates in closed conduits. It enables students and researchers to understand
the working principles, accuracy, and limitations of various flow-measuring
devices, such as the orifice plate, Venturi nozzle, measuring
nozzle, and rotameter.
The unit allows the determination of flow
coefficients, calibration of measuring instruments, and analysis of pressure
distribution using a multi-tube manometer and Pitot tube. It is
an essential teaching aid for fluid mechanics laboratories in engineering
institutions.
Features
- Demonstration of various flow rate measurement techniques in
closed pipes
- Includes Venturi nozzle, orifice plate flow meter, measuring
nozzle, and rotameter
- 6-tube manometer for
visual observation of pressure distribution along the measuring devices
- Pitot tube
provided for measuring total pressure in the flow
- Enables comparison of flow coefficients and calibration of
instruments
- Durable and compact design suitable for laboratory use
- Suitable for connection to a hydraulic bench or independent flow
supply
Specifications
|
Component |
Specification |
|
Venturi Nozzle |
Cross-sectional area: 84…338 mm² |
|
Orifice Plate Flow Meter |
Orifice diameter: 14 mm |
|
Measuring Nozzle |
Diameter: 18.5 mm |
|
Rotameter |
Maximum flow rate: 1700 L/h |
|
Manometer |
6-tube type, Range: 390 mm WC |
|
Pitot Tube |
For measurement of total pressure in flow |
|
Working Fluid |
Water (clean tap water) |
Technical
Data
- Measurement of differential pressure across various flow elements
- Determination of flow rate and discharge coefficients
- Compatible with hydraulic benches for water supply and flow
control
- Manometer tubes clearly marked for easy reading of head differences
List of
Experiments
- Flow measurement using orifice plate flow meter and measuring
nozzle
- Flow measurement through a Venturi nozzle
- Flow rate determination using a rotameter
- Pressure measurement using a Pitot tube
- Comparison of different flow measurement instruments
- Determination of flow coefficients (Cd) for various flow
meters
- Calibration of measuring instruments for accurate flow rate determination
Services
Required
- Water Supply:
Continuous and controlled (from hydraulic bench or external source)
- Drain Connection:
Required for discharge
- Power Supply: Not
required for basic setup (optional if used with data acquisition)
