Orifice Discharge Apparatus Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14116

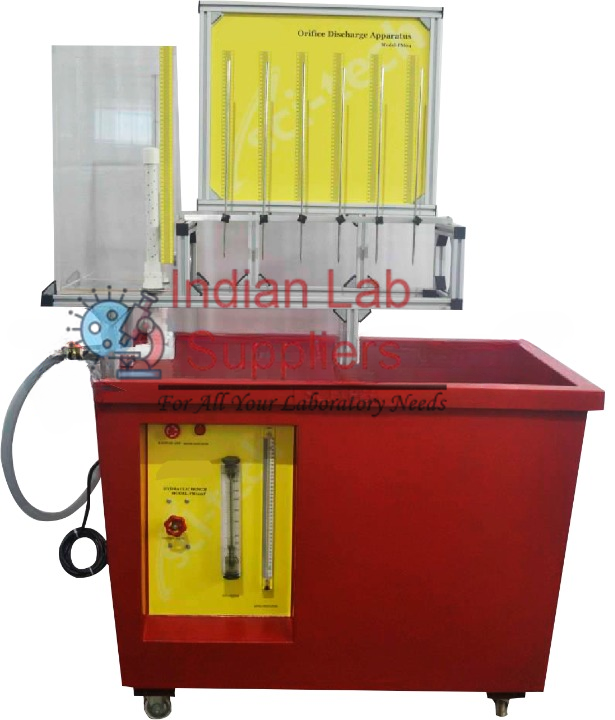

The Orifice Discharge Apparatus is a self-contained experimental setup designed for students to investigate flow through orifices and nozzles and determine their key coefficients, including the coefficient of discharge (Cd), coefficient of velocity (Cv), and coefficient of contraction (Cc).

The core of the apparatus is a vertically mounted cylindrical transparent tank (Plexiglas) where the orifice is fitted flush in the base. A constant head over the orifice is maintained using an adjustable overflow pipe, and the head level is indicated by a scale. A crucial component is the Pitot tube with a traversing device, which allows students to measure the jet diameter and accurately locate the vena contracta (the point of minimum jet area), necessary for calculating the coefficient of contraction. The total head and Pitot head are measured using adjacent manometer tubes. The setup is compatible with a Hydraulic Bench for water supply and discharge measurement.

Technical Specifications and Components

Feature / Component	Parameter / Specification	Detail / Value
Tank Type	Material, Size, Height	Square Plexiglas tank, clear transparent, 300 x 300 mm, 500 mm height.
Max. Constant Head	Operating Range	420 mm.
Max. Flow Rate	Capacity	14 Liters per minute (Lpm).
Orifice Material	Material	Aluminum.
Sharp Edged Orifice	Diameter	13 mm.
Nozzles Supplied	Quantity	A set of four nozzles (in addition to the orifice).
Pitot Tube	Device and Accuracy	Pitot tube, positioning/traversing unit with micrometer (0.01 mm division).
Level Indicator	Range	500 mm Water Column (WC).
Overall Dimensions	H x W x L	0.8 m x 0.45 m x 0.45 m.
Services Required	Power Supply	240 V, single-phase, 50 Hz.

Experimental Objectives

Experiment	Key Measurement / Investigation	Required Coefficient
Flow Study	Flow through orifice and investigation of the water jet.
Vena Contracta	Locating the point of minimum jet area.	Coefficient of Contraction (Cc).
Coefficient of Velocity	Measuring jet trajectory using the Pitot tube.	Coefficient of Velocity (Cv).
Coefficient of Discharge	Relating actual discharge (from measuring tank) to theoretical discharge.	Coefficient of Discharge (Cd).
Head Effects	Study of Cd at various constant heads over the orifice.
Nozzle Comparison	Determination and comparison of Cd for different nozzles and the sharp-edged orifice.
