Product Code : SCL-CELE-14100

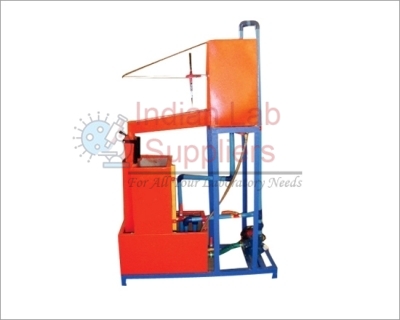

This laboratory apparatus is designed for the empirical study
and measurement of fluid discharge through orifices and mouthpieces,
key elements used for flow rate determination in fluid mechanics. An orifice
is defined as an opening in a tank side or bottom, while a mouthpiece is
a short tube fitted to a circular opening. The setup includes a supply tank
with a universal fixture for mounting various test pieces. A centrifugal
pump and bypass valve regulate the head over the orifice or
mouthpiece. The system is equipped with a measuring tank or flow meter
for volumetric discharge measurement and an X-Y gauge specifically for
measuring the jet trajectory from the orifice, which is used to calculate the coefficient
of velocity (Cv). The primary goal is to determine the coefficient of
discharge (Cd) for different geometries.
Objectives: Determination of Discharge Coefficients
|
Objective |
Key Metric Investigated |
Application in Flow Measurement |
|
To determine the coefficient of discharge (Cd) of orifice
and mouthpiece |
Discharge Coefficient (Cd) |
Quantifying the ratio of actual discharge to theoretical
discharge, critical for flow rate calculation. |
|
To calculate the coefficient of velocity (Cv) of the
orifice |
Coefficient of Velocity (Cv) |
Determining the ratio of the actual jet velocity to the
theoretical velocity using the trajectory method. |
Technical Specifications: Orifice and Mouthpiece Apparatus
|
Component |
Parameter / Specification |
Value / Feature |
|
Supply Tank |
Size |
0.4 x 0.3 x 0.5 m height |
|
Orifices Supplied |
Diameters |
8 mm and 10 mm |
|
Mouthpieces Supplied |
Types and L/D Ratios |
L/D = 4, L/D = 1, Bordas mouthpiece, Convergent mouthpiece |
|
Jet Measurement |
Device |
X-Y gauge for orifice jet coordinates |
|
Flow Measurement |
Device |
Measuring tank of suitable capacity OR a calibrated water
flow meter |
|
Pump |
Type and Power |
0.5 HP pump with valve |
|
System Storage |
Sump Tank |
Suitable capacity |
|
Utilities |
Power Supply |
230 Volts, 5 Amp. Stabilized AC |
|
Workspace Requirement |
Flow Surface |
2 mtrs. x 1 mtr. x 1.5 mtrs. height |
