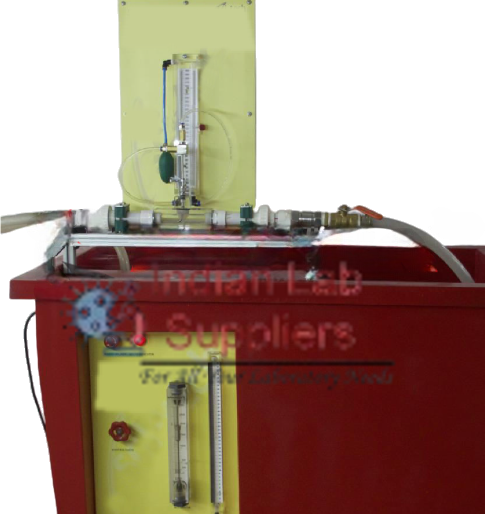

Pitot Static Tube Apparatus Manufacturer,Supplier and Exporter in India
.png)
Product Code : SCL-CELE-14160
Overview
The Pitot Static Tube Apparatus is
designed to measure the local velocity of fluid flow at a given point
within a pipe or duct.
The system demonstrates the fundamental principle of converting velocity
head into pressure difference and enables the plotting of velocity
profiles across the pipe cross-section.
The apparatus consists of a Pitot tube
mounted on a Vernier scale to allow precise positioning within the
transparent test section.
A U-tube manometer measures the differential pressure corresponding to
the velocity head.
The entire setup operates as a self-contained, water-recirculating unit
with flow regulation and measurement facilities, suitable for both
demonstration and quantitative analysis.
Key
Features
- Compact, durable, and fully self-contained design
- Pitot tube made
of Copper or Stainless Steel with precision Vernier positioning
- Transparent acrylic test section for
visual flow observation
- Flow control valve to
regulate and vary discharge rate
- U-tube manometer for
accurate pressure head measurement
- Hydraulic Bench or
sump-pump system for water recirculation
- Ideal for understanding point velocity measurement and velocity
distribution in internal flows
Experimental
Capabilities
- To determine the point velocity at the center of a pipe for
various flow rates
- To calibrate the Pitot tube using measured flow rates
- To plot the velocity profile across the pipe cross-section
- To understand the relationship between velocity head and pressure
difference
System
Components
|
Component |
Description |
|
Pitot Tube |
Made of Copper or Stainless Steel; precision mounted below Vernier
scale |
|
Vernier Scale |
Enables fine measurement of probe position inside the test section |
|
Test Section |
Clear Acrylic pipe section for flow visualization |
|
Flow Control Valve |
For regulating flow rate through the test section |
|
U-Tube Manometer |
For measuring differential pressure head |
|
Hydraulic Bench / Circulating Unit |
Includes sump tank and centrifugal pump for recirculation |
|
Measuring Tank & Stopwatch |
For volumetric flow rate measurement |
|
Support Frame |
Rigid M.S. frame with corrosion-resistant coating |
Technical
Specifications
|
Parameter |
Specification |
|
Pitot Tube Material |
Copper / Stainless Steel |
|
Test Section Material |
Clear Acrylic |
|
Pipe Diameter |
Compatible with 1” (25 mm) dia. pipe |
|
Flow Measurement |
Measuring tank with stopwatch (manual) |
|
Manometer Type |
U-tube water manometer |
|
Flow Control |
Manual flow control and bypass valves |
|
Pump Power |
0.5 kW centrifugal pump (part of hydraulic bench) |
|
Construction |
Powder-coated mild steel frame |
Utilities
Required
|
Service |
Requirement |
|
Electrical Supply |
220 V AC, 50 Hz, single phase, 0.5 kW |
|
Water Supply |
Continuous clean water supply |
|
Drainage |
Required for water discharge and maintenance |
