Product Code : SCL-CELE-14158
Overview

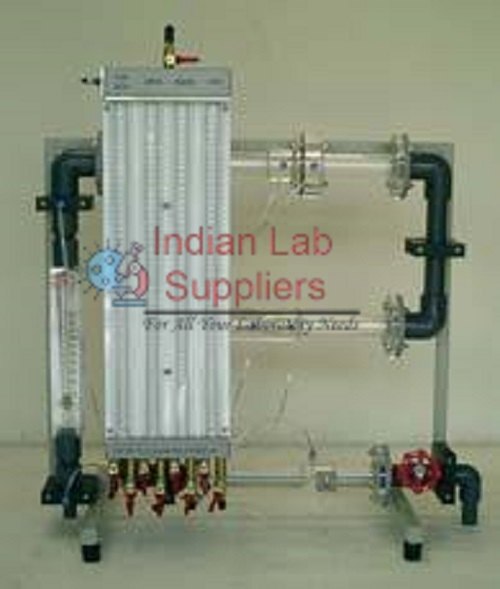

The Flow Meter Measurement &
Calibration Trainer is designed to study, compare, and calibrate different
types of flow meters commonly used in process and fluid mechanics applications.
The setup enables students to observe pressure losses, accuracy
variations, and performance characteristics of various meters under
identical flow conditions.
The system includes Venturi meter, Orifice
flow meter, Variable area (rotameter), and Pitot tube, all
connected in series to permit direct comparison.
A flow control valve allows flow variation, and pressure tapping
points connected to a multi-tube manometer enable precise measurement of
head losses across each device.
The trainer is mounted on a sturdy framework
and designed to work with a Hydraulic Bench (as a water source and
volumetric flow calibration unit).
Optional electronic accessories like differential pressure sensors and electromagnetic
flow rate sensors can enhance functionality and data accuracy.
Key
Features
- Direct comparison and calibration of multiple flow meter types
under identical flow conditions
- Study of pressure loss, discharge coefficient, and velocity
profile
- Quick-change adaptors for
fast installation of different flow meters
- Integrated multi-tube manometer with common manifold and air
bleed valve
- Hand pump provided for manometer pressurization
- Compatible with Hydraulic Bench for accurate volumetric
calibration
- Optional integration with digital sensors and data
acquisition systems
- Demonstrates the principles of accuracy, losses, and flow
behavior essential in fluid mechanics and process industries
Experimental
Capabilities
|
No. |
Experiment Description |
|
1 |
Comparison of flow measurement using different flow meters |
|
2 |
Calibration of each flow meter using the Hydraulic Bench |
|
3 |
Determination of pressure drop across each device |
|
4 |
Calculation of coefficient of discharge (Cd) |
|
5 |
Study of losses and k-values for different flow meters |
|
6 |
Measurement of velocity profile in a pipe using Pitot tube |
|
7 |
Comparison of accuracy of Orifice, Venturi, and Pitot tube flow
meters |
|
8 |
Observation of boundary layer effects and surface friction in
pipe flow |
System
Components
|
Component |
Description |
|
Venturi Flow Meter |
ISO-standard Venturi meter; measures pressure before and after
constriction; quick-fit assembly |
|
Orifice Flow Meter |
Sharp-edged orifice plate; measures upstream and downstream pressure;
demonstrates energy loss |
|
Variable Area Flow Meter (Rotameter) |
Transparent vertical flow meter for visual flow indication |
|
Pitot Tube Assembly |
Precision micrometer head for traversing tip position; measures static
and total pressure for velocity profiling |
|
Nozzle Flow Meter |
Demonstrates flow through converging nozzle geometry |
|
Flow Control Valve |
Mounted downstream to regulate and stabilize flow |
|
Manometer Bank |
Minimum 4-tube manometer with common manifold and air valve |
|
Hand Pump |
Used to pressurize the manometer for balancing readings |
|
Pipes & Fittings |
Transparent and durable for visual observation |
|
Support Framework |
Powder-coated metal frame designed for bench mounting |
|
Optional Sensors |
Differential pressure, rotameter, or electromagnetic flow meters for
digital measurement |
Technical
Specifications
|
Parameter |
Specification |
|
Flow Meters Included |
Venturi meter, Orifice plate, Variable area (Rotameter), Pitot tube,
Nozzle flow meter |
|
Flow Meter Mounting |
Quick-change adaptors and pressure connections |
|
Manometer Bank |
4–8 tube type, common manifold with air valve |
|
Flow Control Valve |
Downstream, stainless steel construction |
|
Hand Pump |
Integrated for air pressurization of manometer |
|
Measurement Range |
Suitable for flow rates typically 0–30 L/min (depending on hydraulic
bench) |
|
Pressure Tapping |
Provided across each flow meter |
|
Frame Construction |
MS frame with powder coating |
|
Working Medium |
Water (closed loop via Hydraulic Bench) |
|
Power Requirement |
220–240 V AC, 50 Hz, 1 phase |
|
Water Supply |
From compatible Hydraulic Bench (external unit) |
