Hydraulic Bench Apparatus Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14113

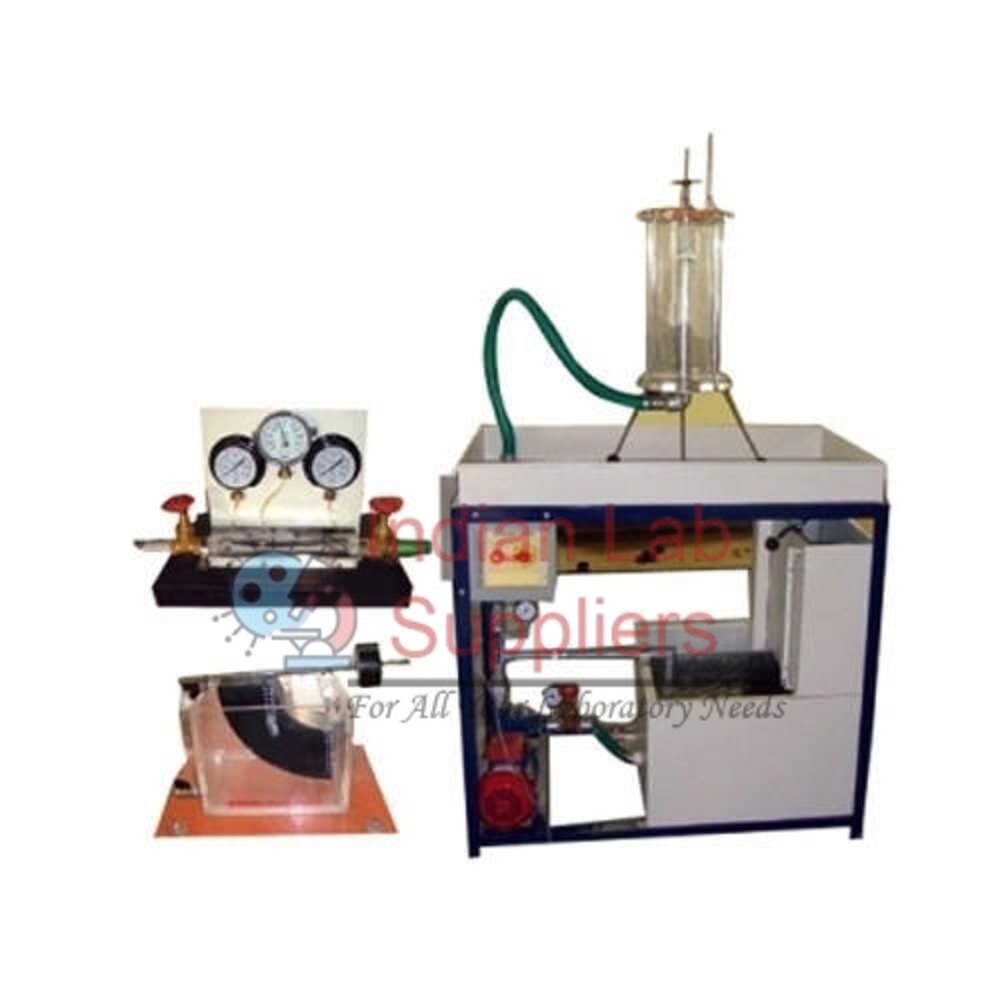

This apparatus is a self-contained, versatile Hydraulic Bench designed to serve as the base unit and water supply system for a wide range of separate experiments in fluid mechanics, such as Hydrostatic Pressure, Flow over Weirs, Bernoulli’s Theorem, Flow meter Demonstration, Impact of Jet, and Orifice Discharge.

The bench functions as a water recirculation unit equipped with a top tray, a sump tank, and a measuring tank. A centrifugal pump (1 HP) is fitted to provide water circulation, and the flow rate is controlled using both a flow control valve and a bypass valve, allowing for various flow conditions during experiments. The key to accurate results is the precise measurement of the water flow rate, which is achieved volumetrically using the dedicated measuring tank and a stop watch. The measuring tank is designed with a separate level indicator and scale for reading the water level, and a drain valve to empty the measured water back into the sump tank.

Components and Functionality

Component	Function	Feature / Material
Centrifugal Pump (1 HP)	Provides pressurized water for circulation to the experimental accessories.	1 HP capacity.
Top Tray	Working surface where experimental accessories are placed and collects discharged water.	Size: 1060 mm x 650 mm.
Sump Tank	Storage reservoir for the circulating water.	Capacity: 120 Liters, Material: SS (Stainless Steel).
Measuring Tank	Used for accurate, volumetric determination of the flow rate (discharge).	Capacity: 40 Liters, Material: SS (Stainless Steel).
Valves (Flow/Bypass)	Regulates the flow rate of water supplied to the experimental setup.	Allows experiments at different flow rates.
Level Indicator & Scale	Measures the volume of water collected in the measuring tank.	Provided separately on the measuring tank.

Specifications and Utilities

Specification / Utility	Parameter	Value
Top Tray Size	Dimensions	1060 mm x 650 mm
Sump Tank	Capacity / Material	120 Liters / SS
Measuring Tank	Capacity / Material	40 Liters / SS
Pump Power	Rating	1 HP
Structure Finish	Coating	Good quality powder coating painted structure
Initial Water Fill	Requirement	Approx 250 Liters
Electric Supply	Power	220 V AC, 50 Hz, single phase
Floor Area	Requirement	1.75 m x 1.50 m
