Fluid Statistics & Manometry Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14164

Overview

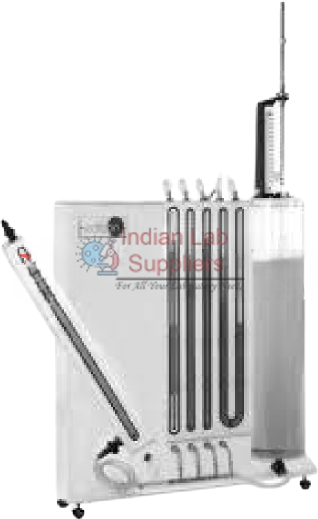

The Fluid Statics & Manometry Apparatus is a versatile teaching unit designed to study the principles of fluids at rest and to perform a wide range of pressure measurement experiments using manometers. It provides a comprehensive introduction to hydrostatics, enabling students to understand how fluids behave under static conditions before advancing to fluid dynamics.

This apparatus demonstrates fundamental principles such as pressure in liquids, hydrostatic equilibrium, and manometric pressure measurement. It includes a liquid reservoir and a range of manometers (U-tube, single limb, and inclined), allowing for both basic and advanced fluid statics studies.

Key Features

Demonstrates pressure measurement in liquids and gases using multiple types of manometers.
Provides a clear understanding of fluid behavior at rest (hydrostatics).
Includes U-tube, single limb, and inclined tube manometers for a variety of experiments.
Demonstrates measurement of pressure head, differential pressure, and small pressure variations.
Adjustable inclined manometer for enhanced sensitivity and accuracy.
Suitable for both educational and industrial training laboratories.
Durable and compact design, built from corrosion-resistant materials.
Supplied with a comprehensive Operation & Maintenance Manual including theory, procedures, and standard results.

Technical Specifications

Component	Specification
Liquid Reservoir	Ø 100 mm, Height: 600 mm
Manometers Included	U-Tube Manometer, Single Limb Manometer, Inclined Tube Manometer
U-Tube Manometer	Two vertical parallel tubes, transparent, graduated
Single Limb Manometer	Vertical tube with varying cross-section
Inclined Tube Manometer	Mounted on pivot with three selectable inclinations for sensitivity variation
Construction	Rigid frame with acrylic tubes and scale markings
Working Medium	Water, mercury, or manometric fluids (as required)

Experimental Capabilities

Demonstration of liquid behavior at rest (Hydrostatics).
Verification that the free surface of a liquid is horizontal and independent of container shape.
Measurement of small liquid level changes using an inclined manometer or micro-manometer.
Use of a single piezometer/manometer tube to measure fluid head.
Measurement of differential pressure in gases and liquids using U-tube and inclined manometers.
Study of inverted pressurized U-tube manometers for liquid pressure difference measurement.
Investigation of sensitivity variation by using liquids of different densities.
Calibration of manometers and verification of theoretical relationships between pressure and height of liquid columns.

Educational Objectives

Understanding Pascal’s Law and hydrostatic equilibrium.
Exploring pressure distribution in static fluids.
Comparing sensitivity of different manometers.
Learning pressure and head measurement techniques.

Requirements

Service	Specification
Water Supply & Drain	Required
Electricity Supply	Single Phase, 220 VAC, 0.5 kW (for ancillary pump if connected)
Working Area	Bench-top installation
