Product Code : SCL-CELE-14151
Description

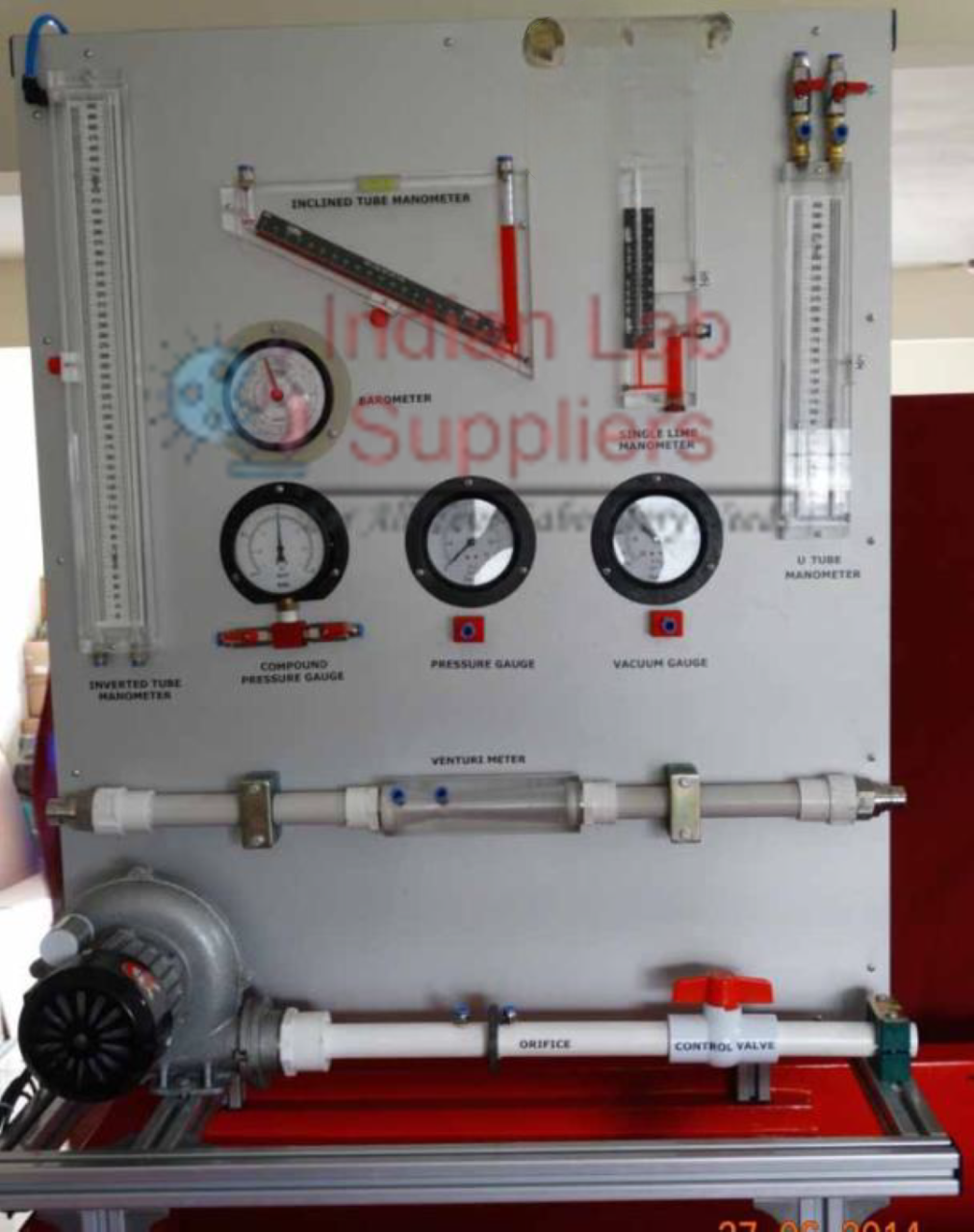

The Pressure Measurement Apparatus is a
self-contained experimental unit designed to study the fundamental
principles of pressure measurement using various devices. The system
includes a centrifugal air blower that supplies pressurized air to
different instruments for experimentation.
Students can connect and observe multiple
pressure-measuring devices such as manometers, Bourdon gauges, barometers,
and differential pressure gauges, gaining a clear understanding of their
operation, range, and accuracy.
This apparatus is ideal for engineering
laboratories to demonstrate and compare the working of different types of
pressure measurement instruments under controlled conditions.
Key
Features
- Compact, sturdy, and comprehensive design
- Complete set of pressure measuring instruments with all necessary
connections
- Enables comparison of various pressure measurement devices
- Integrated air supply via centrifugal blower
- Optional multimedia teaching package for enhanced learning
System
Components
|
Component |
Description |
|
Manometers |
- U-Tube Manometer |
|
Pressure Gauge |
Range: 0 – 2 bar |
|
Vacuum Gauge |
Range: 0 – 760 mm Hg |
|
Differential Pressure Gauge |
For comparing pressure between two points |
|
Venturimeter |
For flow-based pressure measurement study |
|
Barometer |
For atmospheric pressure measurement |
|
Centrifugal Blower |
Provides pressurized air supply for all instruments |
List of
Experiments
|
No. |
Experiment Title |
|
1 |
Study of pressure measuring systems |
|
2 |
Study of a barometer and atmospheric pressure |
|
3 |
Pressure measurement using various manometers |
|
4 |
Pressure measurement using Bourdon-type pressure gauges |
Optional
Accessories
|
Accessory |
Description |
|
Multimedia Computer-Based Training Package |
Covers pump construction and characteristics |
|
Cut Sections of Valves & Pumps |
For detailed internal component study |
|
Transparencies & Slides |
Visual teaching aids for classroom use |
Operation
& Maintenance
A comprehensive Operation and Maintenance
Manual is provided, including:
- Theoretical background
- Operating procedures
- Standard experimental results
- Maintenance and safety guidelines
Services
Required at Site
|
Service |
Specification |
|
Electric Supply |
230 V AC, 50 Hz, single phase, properly earthed |
