Sedimentation Tank Model Manufacturer,Supplier and Exporter in India
.png)
Product Code : SCL-CELE-14174
Overview

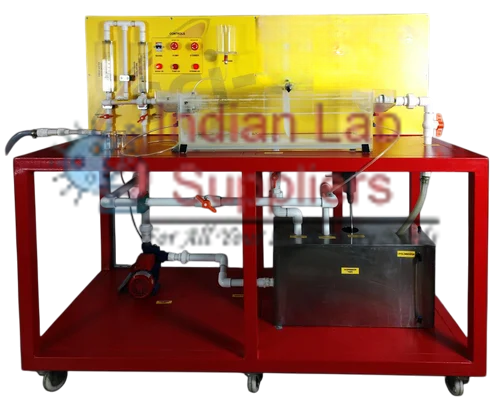

The Sedimentation Tank Model Demonstrator
is designed to study and visualize the process of solid-liquid separation by
gravity sedimentation in a controlled laboratory environment. It allows
detailed investigation of the factors influencing the sedimentation process,
such as flow rate, baffle configuration, and suspension
concentration, while providing excellent visual access to the internal flow
conditions.
The apparatus features a transparent
acrylic sedimentation tank, ensuring clear observation of flow regimes,
short-circuiting, and dead zones. Suspensions are circulated using a variable-speed
pump, and flow meters enable accurate adjustment and monitoring of
water and suspension flow rates. A dye injection system is provided for flow
visualization and tracer studies, allowing direct comparison with idealized
flow models.
A detailed Operation & Maintenance
Manual is supplied with the unit for setup, operation, and maintenance
guidance.
Key
Features
- Transparent acrylic sedimentation tank for complete visualization of flow and settling behavior.
- Adjustable baffle plate for
studying the effect of baffle positioning on flow distribution and
separation efficiency.
- Independent flow control and measurement for both water and suspension streams using precision flow meters.
- Integrated dye injection system for
hydraulic tracer studies and visualization of flow paths.
- Bypass circuit for
recirculation of suspension, ensuring homogeneous mixing and preventing
premature settling.
- Solid concentration measurement using
Imhoff cones at tank inlet and outlet.
- Non-corrosive materials for
durability and easy maintenance.
Technical
Specifications
|
Component |
Specification |
|
Sedimentation Tank |
1000 × 400 × 230 mm (L × W × H); Capacity: approx. 80 L; Material:
Clear Acrylic |
|
Sump Tank |
120 liters capacity |
|
Water Flow Meter Range |
0.5 – 5.0 liters/min |
|
Suspension Flow Meter Range |
0 – 2.0 liters/min |
|
Pump Flow Rate |
25 liters/min at 5 m head |
|
Motor Rating |
0.1 kW |
|
Dye Injection System |
Piston burette for tracer addition |
|
Baffle Plate |
Adjustable in horizontal and vertical positions |
|
Construction |
Transparent acrylic with non-corrosive fittings |
Experimental
Capabilities
- Demonstration of solid-liquid separation in a sedimentation
tank.
- Study of flow patterns and mixing behavior using dye tracer
injection.
- Measurement of flow short-circuiting and dead zones within
the tank.
- Investigation of the effect of flow rate and baffle positioning
on sedimentation efficiency.
- Measurement of sediment removal efficiency and its
correlation with flow dynamics.
- Comparison of observed flow regimes with idealized
hydraulic models.
Educational
Objectives
- Understand the fundamentals of gravity sedimentation.
- Visualize flow distribution and sedimentation processes in
real time.
- Analyze the influence of hydraulic parameters on separation
efficiency.
- Evaluate tank design improvements for enhanced performance.
Required
Services
|
Service |
Specification |
|
Electrical Supply |
230 V AC, Single Phase, Earthed |
|
Water Supply |
Tap water connection |
|
Drainage |
Required for sediment and overflow discharge |
