Sedimentation Studies Apparatus Manufacturer,Supplier and Exporter in India
.png)
Product Code : SCL-CELE-14170
Overview
The Sedimentation Studies Apparatus is
designed to investigate and compare the sedimentation characteristics of
different suspensions under controlled laboratory conditions. The unit
enables detailed observation of the settling process and analysis of the
factors influencing sedimentation, such as particle size, concentration, and
flocculant use.

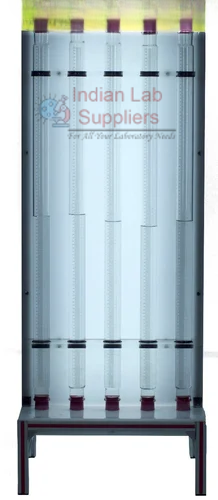

The apparatus consists of five transparent
glass sedimentation columns, each equipped with a graduated scale
for accurate measurement of sedimentation levels. The columns are illuminated
from behind using fluorescent lamps to enhance visibility of the settling
process. Suspensions are prepared in measuring cups, poured into removable
columns, and mounted vertically for testing.
This equipment is essential for environmental,
civil, and chemical engineering laboratories studying solid-liquid
separation processes and water treatment applications.
Key
Features
- Five sedimentation columns
provided for comparative studies.
- Transparent glass columns for
clear visibility of sedimentation process.
- Illuminated background
(fluorescent lighting) for enhanced observation.
- Graduated scales on
each column for accurate measurement of settling rates.
- Removable columns for
easy filling, cleaning, and sample replacement.
- Compact and durable frame,
suitable for laboratory use.
- Detailed Operation & Maintenance Manual included.
Technical
Specifications
|
Component |
Specification |
|
Number of Columns |
5 Nos. |
|
Column Material |
Glass |
|
Column Length |
1000 mm |
|
Column Diameter |
51 mm |
|
Scale Division |
1 mm |
|
Illumination |
Fluorescent tubes for backlighting |
|
Accessories Supplied |
Measuring cups, Stopwatch |
|
Frame Material |
Rigid metallic frame with mounted columns |
|
Power Supply |
230 V AC, Single Phase |
Experimental
Capabilities
- Study of the effect of initial concentration on
sedimentation rates.
- Construction of settling rate curves from a single batch test.
- Analysis of the effect of initial suspension height on
sedimentation.
- Study of the effect of particle size distribution and use
of flocculating agents on settling behavior.
Educational
Objectives
- Understand the principles of sedimentation and solid-liquid
separation.
- Observe and analyze zone settling and compression settling
behavior.
- Derive settling rate curves for various suspension
conditions.
- Compare sedimentation performance with and without
flocculants.
Required
Instruments
|
Instrument |
Specification |
|
Triple Beam Top Loading Balance |
Capacity: 2610 g |
Required
Services
|
Service |
Specification |
|
Electrical Supply |
230 V AC, Single Phase |
Documentation
A comprehensive Operation & Maintenance
Manual is supplied, including:
- Setup and operating instructions
- Experimental procedures
- Data recording templates and sample results
- Theoretical background and analysis methods
