Rotary Vane Vacuum Pump Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14196

Overview

The Rotary Vane Pump Test Apparatus is designed to demonstrate the principles of vacuum generation, the operating behavior of a rotary vane pump, and the simulation of leaks in vacuum systems.
Vacuum technology is widely applied in process engineering, vacuum distillation, absorption systems, and vacuum filtration. It enables processes that require the lowering of boiling points, efficient removal of gases, or separation of substances at reduced pressure.

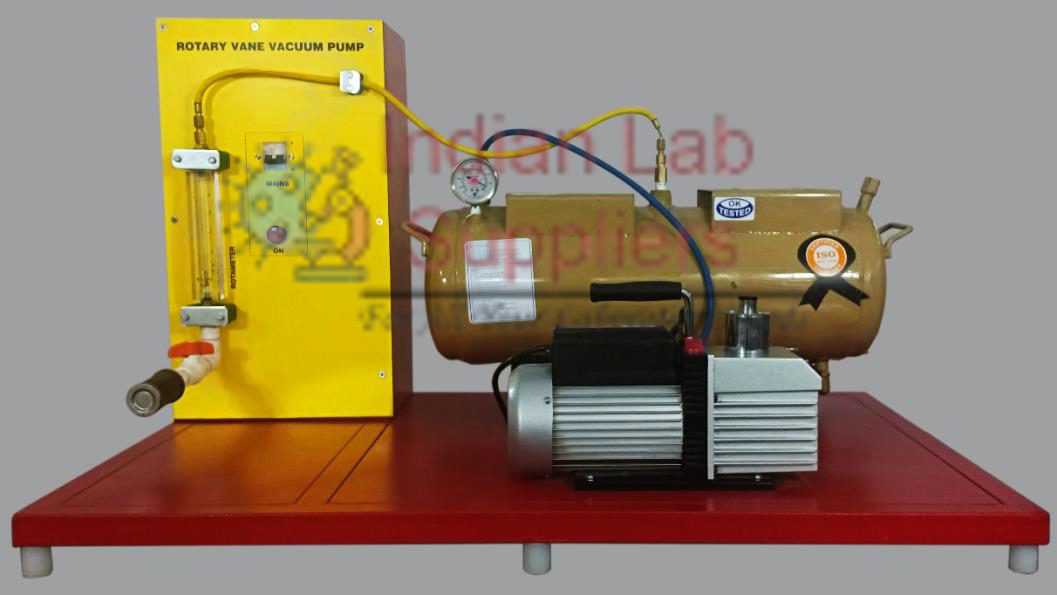

The apparatus includes a rotary vane vacuum pump connected to a steel pressure vessel, which acts as a vacuum chamber. The negative pressure (vacuum) within the vessel can be clearly observed using a large analog manometer.
Two adjustable inlet lines allow for the simulation of system loads and leaks, with one line equipped with a needle valve and a flow meter for quantitative analysis. Silencers are integrated into the lines to reduce noise during operation.

The setup includes an oil separator on the delivery side of the pump to recover oil carried by the exhaust air. The degree of oil separation is exceptionally high (99.98%), ensuring clean discharge and efficient pump operation.

Key Features

• Demonstration of vacuum generation using a rotary vane pump.
• Simulation of leaks and loads using adjustable needle valves.
• Steel vacuum vessel (20 L) for creating and maintaining negative pressure.
• Oil separator with tank for removing oil mist from exhaust air.
• Analog manometer for accurate vacuum pressure indication.
• Flow meter for quantitative analysis of leak and load airflows.
• Silencers on inlet lines to minimize operational noise.
• Compact, self-contained, and durable design for laboratory use.
• Educational setup ideal for understanding vacuum dynamics and pump performance.

Technical Specifications

Instrumentation & Components

• Rotary vane vacuum pump with oil lubrication.
• Steel vacuum vessel (20 L) for negative pressure generation.
• Oil separator on delivery side with 99.98% efficiency.
• Large analog manometer for vacuum pressure display.
• Two inlet lines for simulation of system loads and leaks:
• One with needle valve.
• One with needle valve and flow meter.
• Two silencers to reduce airflow noise.
• Pressure and flow measuring instruments for performance analysis.

Experiments & Learning Objectives

1. Familiarization with the principle of operation of a rotary vane pump.
2. Observation of vacuum generation and measurement of pressure over time.
3. Simulation of system leaks and loads using adjustable needle valves.
4. Determination of flow rate as a function of counter pressure.
5. Analysis of vacuum decay characteristics and leak rate estimation.
6. Study of oil separation process and its impact on system efficiency.

Educational Objectives

• Understand the mechanical construction and function of a rotary vane pump.
• Examine the relationship between flow rate, pressure, and leakage.
• Analyze vacuum buildup dynamics and steady-state characteristics.
• Explore real-world applications of vacuum systems in process engineering.
• Gain practical experience in leak detection and system calibration.

Applications

• Process engineering laboratories
• Vacuum technology and fluid mechanics training
• Industrial vacuum process simulation
• Educational demonstrations in mechanical and chemical engineering courses

Required Services

• Mains Power Supply: 220 – 240 V AC, 1 Phase, 50 Hz
