Product Code : SCL-CELE-14146
I. Overview and Purpose
This unit is designed for
the accurate measurement of depression (negative pressure or vacuum) in
fluid systems. The gauge reading directly provides the pressure measurement.
II. Apparatus Description

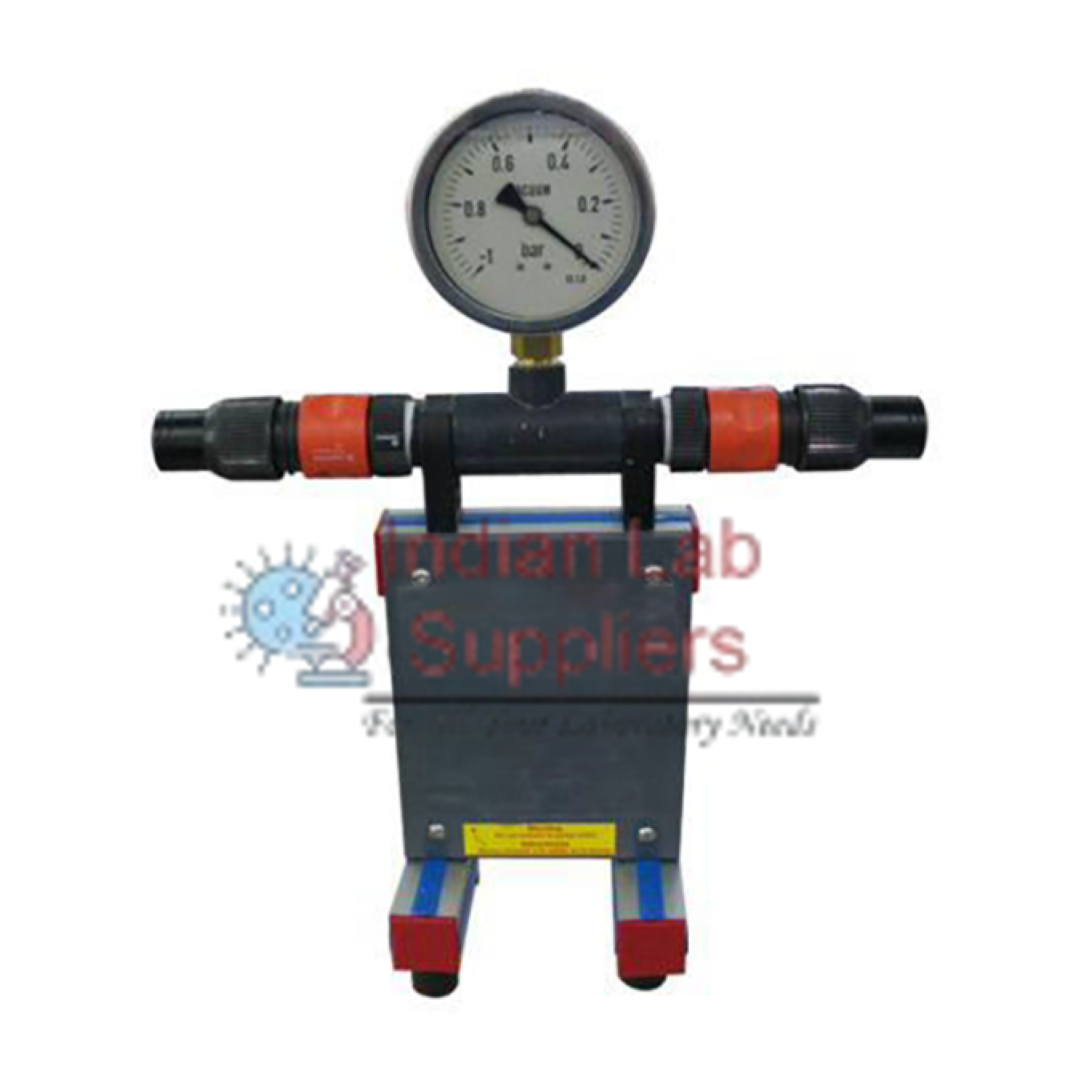

The apparatus is simple and
robust, consisting of an anodized aluminum structure that supports the
measurement instrument.
- Gauge It features a single Pressure-vacuum gauge calibrated to
measure pressures ranging from -1 bar (full vacuum) up to 0 bar
(atmospheric pressure).
- Connections The unit is equipped with two quick
connections on either side of the vacuum gauge. These connections allow
for the easy and secure attachment of reinforced flexible pipes.
- Water Supply The necessary water supply for operation
is typically provided by an external source, such as a Hydraulic Bench.
III. List of Experiments
The apparatus facilitates
the following laboratory exercises related to negative pressure in hydraulic
systems:
- Depression Measurement Measure the negative pressure
(depression) caused by fluid aspiration (suction) generated by a hydraulic
pump.
- Aspiration Analysis Observe and record different negative
pressure readings resulting from various methods of fluid aspiration for
subsequent impulsion (pumping).
IV. Specifications and
Services
|
Feature |
Specification |
Detail |
|
Structure |
Material |
Anodized aluminum |
|
Gauge |
Type |
Pressure-vacuum gauge |
|
Range |
-1 to 0 bar |
|
|
Connections |
Type |
Quick connections (2 at
both sides) |
|
Services
Required |
External Supply |
Hydraulic Bench |
|
Accessories Required |
Flexible pipes |
