Hydraulic Bench

Product Code : SCL-CELE-14201

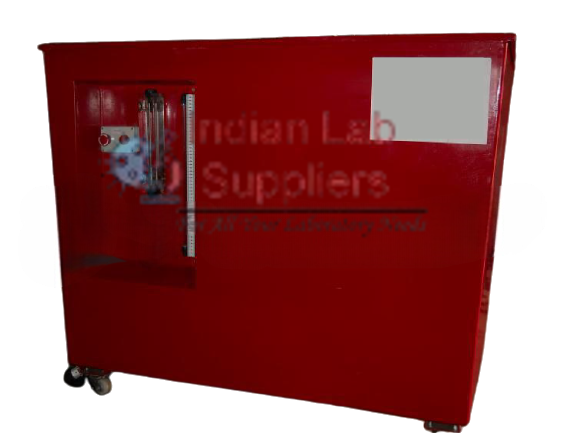

The Basic Hydraulic Bench (Volumetric Type) is a self-contained and portable service unit designed to provide a continuous and controlled water supply for a wide range of experiments in Fluid Mechanics and Hydraulics Laboratories.
It enables the study of flow measurement, hydraulic energy losses, and basic principles of fluid dynamics using a closed water circulation system.

The unit is highly versatile and serves as the primary service module for numerous auxiliary experiment modules.
Once filled, the system operates without requiring an external water supply — water is continuously recycled between the Storage Tank, Measuring Tank, and Experiment Module using a Centrifugal Pump.
Available in fiberglass, stainless steel (SS304), or mild steel, it is ideally suited for educational institutions and training centers.


Key Features

  1. Self-contained, mobile, and portable design with a robust welded frame.
  2. Available in three construction options:
    • Reinforced fiberglass body for lightweight and corrosion resistance.
    • Stainless steel (SS304) body for long service life.
    • Mild steel body for economical laboratory setups.
  3. Closed water circuit with a centrifugal pump, measuring tank, and storage tank for water recirculation.
  4. Flow control valve provided to regulate pump output and flow rate.
  5. Bench-top workspace with an integrated flow channel for weir and flow experiments.
  6. Stepped mounting edges on bench-top for secure placement of auxiliary experiment modules.
  7. Quick-connect pipe fittings for rapid module interchangeability.
  8. Graduated, stepped measuring tank suitable for both low and high flow rates.
  9. Level indicators for water levels in both the measuring tank and open channel.
  10. Variable area flow meter (10–75 LPM) for independent flow rate measurement.
  11. Stilling baffles in the measuring tank to minimize turbulence.
  12. Transparent sight tube with scale for real-time water level indication.
  13. Bull’s-eye level for bench alignment and accurate readings.
  14. Remote actuator for operating the dump valve located at the tank base.
  15. Overflow system in the measuring tank to prevent flooding.
  16. Separate outlet connection on the storage tank for external hydraulic circuits.
  17. Push-button starter for centrifugal pump operation.
  18. Electrical protection with overload and under-voltage safeguards.

Technical Specifications

Component

Specification

Pump

Centrifugal type, variable speed, 0.5 kW

Maximum Flow Rate

100 L/min

Maximum Head

25 m

Control Panel

Included with pump control and protection

Storage Tank Capacity

180 liters (optional 250 liters)

Measuring Tank Capacity

Low flow: 10 liters • High flow: 50 liters

Bench Top Dimensions

1350 mm (L) × 750 mm (W)

Working Surface Height

1 m above floor level

Open Channel Dimensions

750 mm (L) × 250 mm (W) × 170 mm (D)

Flow Meter Range

10 – 75 L/min

Construction Options

Fiberglass / Stainless Steel (SS304) / Mild Steel

Accessories

Bench leveling screws, stopwatch, and deposit remover

Electrical Supply

220–240 V, Single Phase, 50 Hz (earthed)

Overall Dimensions

1350 mm × 750 mm × 1100 mm (H)


Optional Configuration

An optional setup is available for studying centrifugal pump performance under varying load conditions.
In this version, the pump is coupled to a motor dynamometer equipped with:

  • Inverter and digital speed indicator.
  • Spring balance for torque measurement.
  • Pressure gauges at the pump inlet and outlet for head determination.

List of Experiments (with Auxiliary Modules)

  1. Impact of Jet
  2. Flow Over Weirs
  3. Bernoulli’s Theorem Demonstration
  4. Orifice Discharge
  5. Energy Loss in Bends
  6. Osborne Reynolds Demonstration
  7. Energy Loss in Pipes
  8. Hydrostatic Pressure
  9. Flow Visualization in Channels
  10. Dead Weight Calibrator
  11. Metacentric Height
  12. Series & Parallel Pumps
  13. Centrifugal Pump Characteristics
  14. Free and Forced Vortices
  15. Water Hammer
  16. Pelton Turbine
  17. Orifice & Free Jet Flow
  18. Flow Meter Demonstration
  19. Cavitation Phenomenon Demonstration
  20. Laminar Flow Demonstration
  21. Radial Flow Turbine
  22. Venturi, Bernoulli, and Cavitation
  23. Pipe Friction Apparatus
  24. Porous Bed Studies in Venturi Tubes
  25. Flow Channel (1 m Length)
  26. Depression Measurement (Vacuum Gauge)
  27. Axial Flow Turbine
  28. Pump Impeller Display Panel

Educational Objectives

  • Understand the fundamentals of hydraulic flow systems.
  • Measure and analyze flow rates, head losses, and hydraulic energy.
  • Demonstrate principles of continuity, momentum, and energy conservation.
  • Serve as a base unit for diverse fluid mechanics experiments in academic laboratories.
