Flow Meter Demo Apparatus Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14128

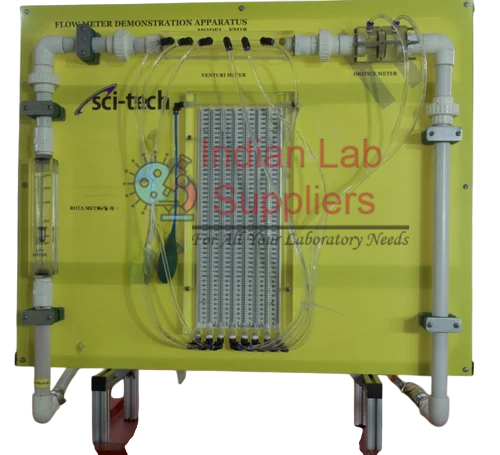

The Flow Meter Demonstration Apparatus is a mobile bench top unit designed to demonstrate the working principles and calibration of common fluid flow measurement devices, primarily the venturi meter, orifice plate, and turbine flow meter. The apparatus utilizes Bernoulli's theorem—which relates pressure head, velocity head, and potential head—as the fundamental principle for operation.

The core apparatus consists of a piping network with the three flow meters instrumented with static pressure taps. A multi-tube manometer is supplied for measuring the static pressure distribution along the venturi and the pressure drop across the orifice plate. The manometer is pressurized by a hand pump. The flow meters are calibrated by comparing their readings against the actual volume flow rate measured using the graduated tank of an external hydraulic bench. The turbine flow meter serves as a convenient reference flow measurement device.

Technical Specifications and Components

Feature / Component	Parameter / Specification	Detail / Value
Piping System	Material and Size	Stainless steel, 25 mm nominal bore.
Venturi Meter	Material and Dimensions	Transparent Acrylic, throat diameter: 15 mm, max diameter: 31.75 mm.
Venturi Tapers	Angles	Upstream taper: 21 degrees, downstream taper: 14 degrees.
Pressure Taps (Venturi)	Quantity	7 static pressure taps.
Orifice Plate	Nominal Diameter	20 mm.
Turbine Flow Meter	Range	2 to 20 Liters per minute (LPM), maximum flow rate.
Manometer	Type and Range	Multi-tube manometer, 0-440 mm water column, 8 tubes, with hand pump.
Overall Dimensions	H x W x L	0.75 m x 0.45 m x 0.95 m.
Services Required	Power Supply	240 V, single-phase, 50 Hz.

Experimental Objectives and Measurements

Experiment / Measurement	Key Investigation	Principle Demonstrated
Calibration	Determination of the coefficient of discharge (Cd) for both the orifice plate and the venturi meter.	Quantifying the discrepancy between theoretical and actual performance.
Bernoulli's Theorem	Demonstration of the continuity equation and Bernoulli’s theorem.	Showing the conservation of energy along a streamline.
Static Pressure Variation	Study of static pressure variation along the venturi at different flow rates.	Visualizing pressure recovery and loss due to contraction/expansion.
Turbine Meter	Study of the working principle and calibration of the turbine flow meter.	Understanding a rotational method of flow measurement.
Measurements	Static pressures along the venturi and across the orifice; flow rate using the turbine meter and the measuring tank.	Collecting data necessary for all calculations and comparisons.

Optional Vortex Flow Meter Specifications

Feature / Component	Parameter / Specification	Detail / Value
Principle	Operation	Von Karman vortex shedding (frequency proportional to flow rate).
Maximum Flow Rate	Capacity	5200 Liters per hour (L/h).
Auxiliary Power	Requirement	24 VDC.
Connections	Features	Connections provided to facilitate pressure loss measurement.
Pipe Connections	Size	DN 32.
