Open & Closed Flow Channel Apparatus Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14166

Overview

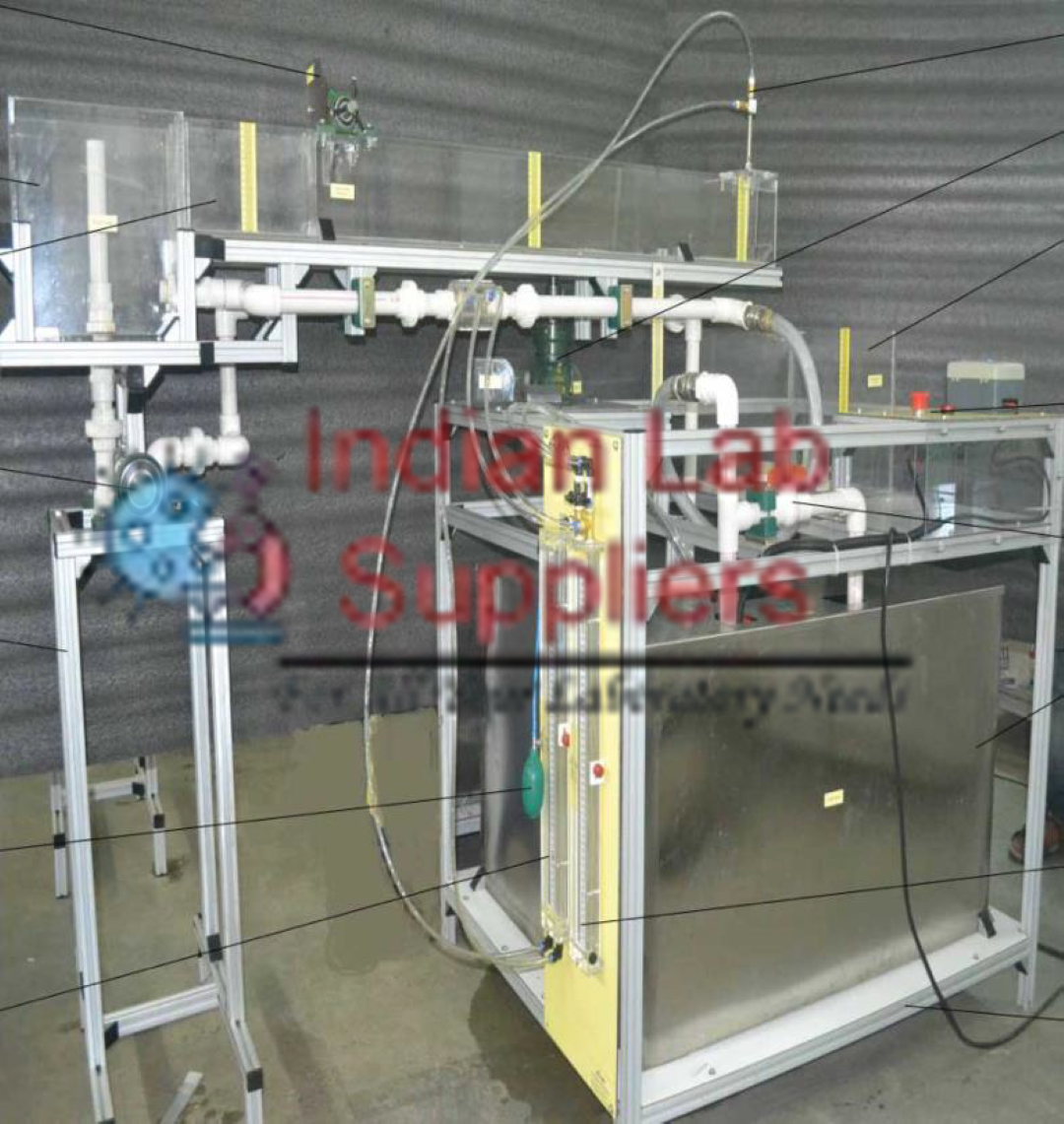

The Hydraulic Flow Channel Demonstrator is a versatile teaching apparatus designed to study and visualize open and closed channel flow phenomena. The transparent flow channel allows direct observation of flow patterns, energy transitions, and hydraulic behavior under various conditions.

Constructed from clear acrylic and mounted on a robust floor-standing metal frame with castors, the apparatus enables both qualitative and quantitative investigations into key hydraulic principles, including the Bernoulli equation, continuity, critical depth, and hydraulic jumps.

The system features a tilting bed section that can be raised or lowered using an external actuator, even during operation, to demonstrate the effects of bed slope and critical flow conditions. Interchangeable weirs and hydraulic structures allow for multiple experimental setups, simulating real-world open channel applications such as sluice gates, sharp crested weirs, and broad crested weirs.

Key Features

Transparent acrylic flow channel for clear visualization of flow behavior.
Adjustable channel bed for slope variation and demonstration of critical depth.
Can operate as both open and closed conduit for wide experimental versatility.
Multiple interchangeable weirs (Sharp Crested, Broad Crested, Overshot, and Undershot).
Pitot tubes and static pressure tappings for head and velocity profile measurement.
Multi-tube manometer for total and static head comparison.
Robust floor-standing steel frame with mobility castors for laboratory use.
Comprehensive Operation & Maintenance Manual supplied with experimental procedures and data sheets.

Technical Specifications

Component	Specification
Working Section (Channel)	75 mm wide × 150 mm high × 1100 mm long
Material	Transparent Acrylic
Operation Modes	Open channel / Closed conduit
Channel Bed	Adjustable height with external actuator
Inlet Tank	With overflow and stilling arrangement
Discharge Tank	Fitted with control valves
Manometer	Multi-tube type (Total & Static heads)
Pitot Tubes	3 adjustable tubes for velocity profile measurement
Weirs & Structures	Sharp Crested, Broad Crested, Overshot, Undershot (sluice gate)
Frame	Floor-standing, powder-coated steel with castors
Connectivity	Compatible with standard Hydraulics Bench

Experimental Capabilities

Closed Conduit Flow

Application of Bernoulli’s and Continuity Equations to converging and diverging sections.
Study of energy losses due to gradual and sudden changes in cross-section.
Measurement of flow rate using contraction as a flow-measuring device.
Determination of velocity profiles using Pitot tubes.

Open Channel Flow

Flow beneath an Undershot Weir (Sluice Gate).
Flow over Sharp Crested and Broad Crested Weirs.
Measurement of discharge using hydraulic structures.
Study of hydraulic jumps – energy dissipation and force balance.
Observation of flow over drop structures and energy losses.
Effect of upstream and downstream water levels on flow conditions.
Relationship between Froude Number and flow profile.
Visualization of flow patterns around hydraulic structures.

Educational Objectives

Demonstrate the fundamental principles of hydraulics and fluid flow.
Understand open channel flow transitions and critical depth phenomena.
Analyze flow measurement using standard weir configurations.
Investigate energy losses in transitions and obstructions.
Explore the relationship between energy, flow depth, and velocity.

Services Required

Service	Specification
Water Supply & Drain	Compatible with Hydraulics Bench
Electricity Supply	Single Phase, 220 VAC, 0.5 kW
Floor Area	1.5 × 0.75 m
