Flow Channel Apparatus Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14121

The Flow Channel Apparatus is a versatile unit for studying open channel flows and visualizing flow patterns around immersed bodies. It is an essential demonstrator for basic fluid mechanics principles.

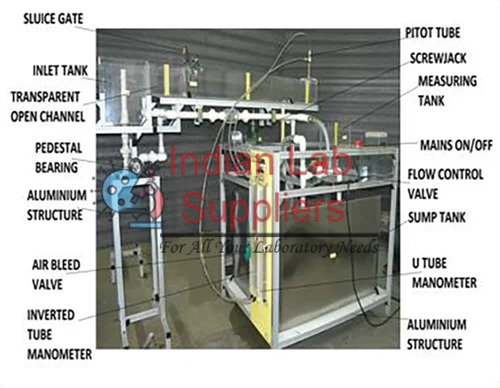

The central component is a clear acrylic plastic open flow channel with a high depth-to-width ratio, ideal for various experiments. Flow conditions are controlled by undershoot and overshoot adjustable weirs at the inlet and exit, which regulate flow depth and velocity. Water is conditioned via a stilling tank and nozzle to ensure clean flow with minimum disturbance.

The flow rate is measured volumetrically using the measuring tank of the hydraulic bench. A dedicated dye injection system (dye reservoir and multiple needles) is supplied for streamline pattern visualization. The apparatus also includes various models, such as weirs and drag bodies (aerofoils, cylinders, ship model), to facilitate a comprehensive range of experiments.

Technical Specifications and Components

Feature / Component	Parameter / Specification	Detail / Value
Open Flow Channel	Material and Dimensions	Clear acrylic plastic, 20 mm width, 160 mm depth, 625 mm length.
Flow Control	Devices	Undershoot and overshoot adjustable weirs (inlet/exit), sluice gate.
Flow Conditioning	Mechanism	Stilling tank and nozzle (minimizes inlet disturbances).
Dye System	Reservoir and Needles	Capacity 0.5 liters, 5 dye injection needles.
Models Supplied (8 Nos.)	Types	Broad crested weir, sharp crested weir, symmetrical aerofoil, non-symmetrical aerofoil, 15mm cylinder, 30mm cylinder, ship model, and hump.
Overall Dimensions	H x W x L	0.80 m x 0.65 m x 1.0 m.
Services Required	Power Supply	240 V, single-phase, 50 Hz.

Experimental Objectives

Experiment Group	Key Measurement / Investigation	Hydraulic Principle
Open Channel Flow Basics	Study of basic open channel flows with variable depth and velocity.	Calculation of Froude number and similarity of flows.
Flow Regimes	Study of uniform flow, gradually varied flow, and rapidly varied flow.	Froude number correlations and regime characteristics.
Flow Control Structures	Study of flow over different weirs (undershoot, overshoot, broad, sharp crested) and under a sluice gate.	Determining discharge coefficients and head-discharge relationships.
Visualization	Visualization of streamline patterns around models like aerofoil, cylinder, ship model, and hump.	Observing boundary layer behavior, separation, and wake formation.
