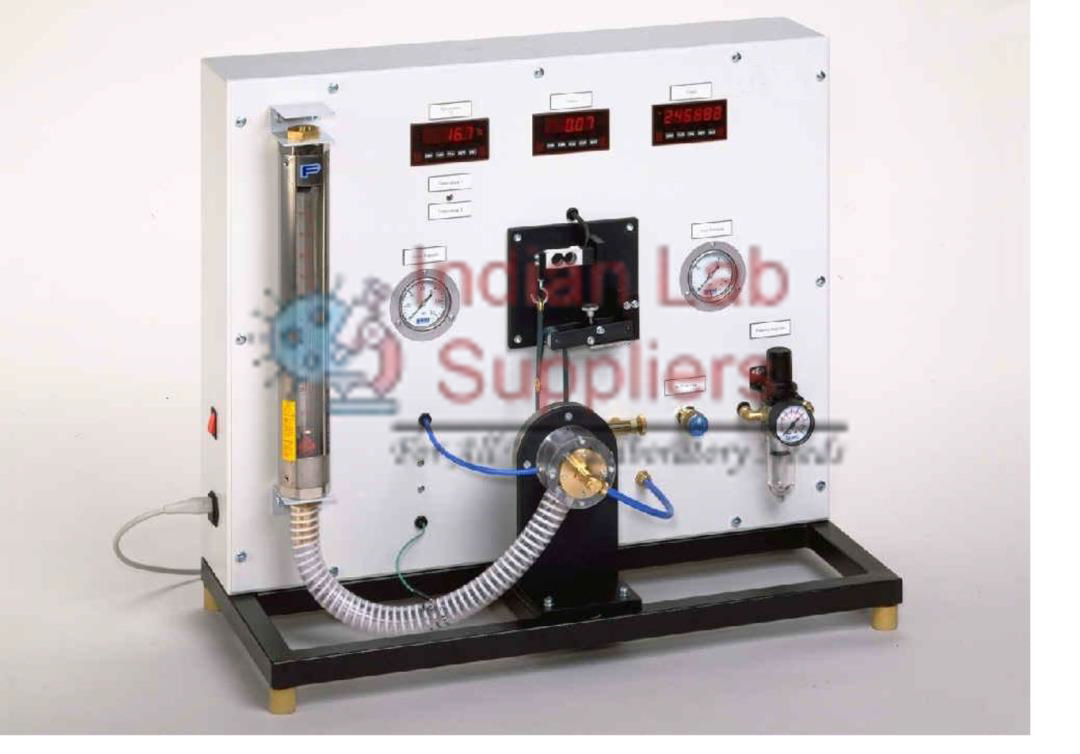

Reaction Turbine (150W) Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14190

Overview

The Reaction Turbine Test Apparatus is a compact, compressed-air-operated trainer designed to study the characteristic behavior of a radial reaction turbine. The unit demonstrates the conversion of pressure energy into kinetic energy within the rotor — a principle fundamental to the operation of steam and hydraulic reaction turbines.

Air acts as the working medium and flows through four nozzle-shaped rotor exits, expanding and accelerating as it passes through. The resulting air jet imparts a reaction force on the turbine rotor, setting it into motion according to Newton’s third law of motion. The apparatus is housed within a transparent chamber, allowing clear observation of turbine operation.

The turbine load is applied using a band brake connected to a force sensor for torque measurement. Speed is measured via an optical speed sensor, while inlet and outlet pressures are displayed on precision manometers. The system includes a rotameter to measure volumetric airflow rate and an air preparation unit for pressure regulation.

The apparatus is also equipped with a quick-action stop valve for overspeed protection and a cooling system for the brake drum, ensuring safe and continuous operation. A digital display unit provides real-time readouts of torque, speed, and temperature.

Key Features

• Comprehensive reaction turbine trainer for airflow studies.
• Closed, compressed-air system for safe, controlled operation.
• Transparent turbine housing for visual observation of airflow and rotor motion.
• Four-nozzle turbine rotor designed to demonstrate pressure-to-velocity energy conversion.
• Variable working pressure using an adjustable air preparation unit (0.5…8.5 bar).
• Load application via band brake for torque measurement.
• Optical speed sensor for precise rotational speed detection.
• Force sensor for torque determination on the turbine shaft.
• Manometers for inlet and outlet pressure monitoring.
• Rotameter for volumetric airflow rate measurement.
• Digital display for torque, speed, and temperature.
• Quick-action stop valve for overspeed protection.
• Air-cooled brake drum for stable, long-duration experiments.
• Detailed operation and maintenance manual included.

Technical Specifications

Instrumentation & Controls

• Digital Display Module:
  Displays real-time torque, speed, and temperature readings.
• Optical Speed Sensor:
  High-precision detection of turbine rotational speed.
• Force Sensor (Band Brake):
  Measures torque applied by the brake.
• Pressure Gauges (Manometers):
  Measure inlet and outlet pressures across the turbine.
• Rotameter:
  Indicates volumetric flow rate of the compressed air.
• Quick-Action Safety Valve:
  Protects against overspeed conditions.
• Air Preparation Unit:
  Regulates and maintains desired air pressure and flow.

Experiment Capabilities

1. Study of the characteristic behavior of a reaction turbine operating with air.
2. Measurement of power output as a function of volumetric flow rate, inlet pressure, and rotational speed.
3. Recording of torque characteristics using band brake loading.
4. Determination of overall turbine efficiency.
5. Investigation of partial load operation by adjusting flow rate through throttling.

Educational Objectives

• Demonstrate pressure-to-velocity energy conversion in a reaction turbine.
• Understand the relationship between flow rate, pressure, speed, and power output.
• Learn methods for torque and efficiency measurement using mechanical braking.
• Analyze turbine performance under varying load conditions.
• Draw analogies to steam and hydraulic reaction turbines.

Safety Features

• Quick-action stop valve for overspeed protection.
• Air-cooled brake drum to prevent overheating.
• Transparent safety enclosure for clear yet safe visualization.
• Pressure regulation and controlled airflow via preparation unit.

Required Services

• Electrical Supply: 400 V AC, 3 Phase, 50 Hz
• Compressed Air Supply: 6–10 bar (max. 300 L/min)
