Product Code : SCL-CELE-14207

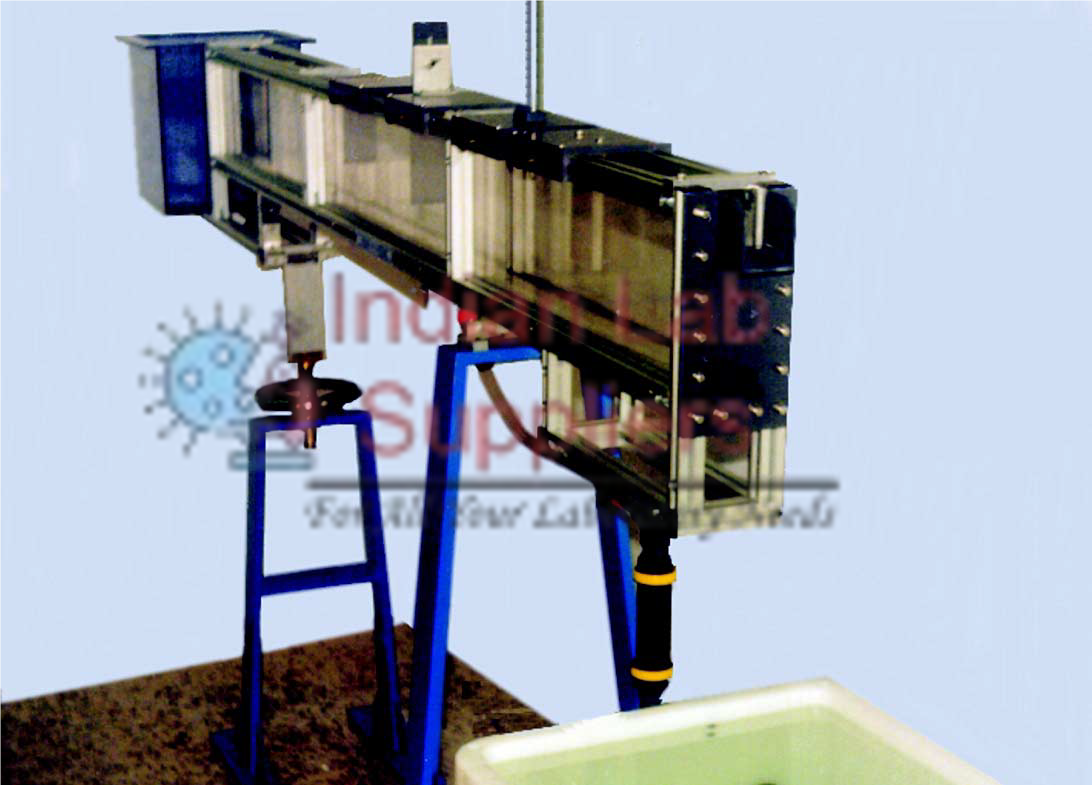

The Open Channel Sediment Transport
Demonstrator is designed to study the principles of open-channel flow
and bed-load sediment transport using sand as the medium. It enables the
observation of subcritical and supercritical flow regimes with or without
sediment transport.
The apparatus features an inclined flume
with a closed water circuit, allowing precise control of flow conditions.
The tempered glass sidewalls provide clear visualization, while all
components in contact with water are made from corrosion-resistant materials
for durability.
The adjustable flume inclination allows
fine slope control to produce uniform flow. The system includes a flow-optimized
inlet to minimize turbulence and a sediment trap to prevent material
recirculation. Additional accessories such as a sluice gate and bridge
pier allow the study of scour formation and siltation around
structures. Flow visualization can be enhanced with the use of a contrast
medium.
Features
- Study of open-channel flow with or without bed-load
transport
- Inclining experimental flume with
closed water circulation system
- Tempered glass sidewalls for
clear observation of flow and sediment movement
- Smooth inclination adjustment from
–1% to +3% for precise slope control
- Corrosion-resistant construction
(stainless steel and glass-reinforced plastic)
- Flow-optimized inlet element for
low-turbulence entry
- Integrated sediment trap to
prevent backflow of sand
- Closed water circuit with
storage tank, pump, and manual flow control
- Includes sluice gate and rounded bridge pier for fluvial
structure studies
- Flow visualization with
contrast medium injection
- Discharge measurement using
a measuring weir at the outlet
- Level gauge for
measuring discharge depth and sediment bed profile
Technical
Specifications
|
Component |
Specification |
|
Experimental Section |
Length: 1600 mm |
|
Water Tank |
Capacity: 280 L |
|
Pump |
Power consumption: 1.02 kW |
|
Sediment Trap |
Filter element: 49 mesh |
|
Materials |
Stainless steel, glass-reinforced plastic, tempered glass |
|
Visualization |
Flow visualization using contrast medium |
|
Flow Measurement |
Measuring weir and level gauge |
|
Included Accessories |
Sluice gate, rounded pier, sediment trap, inlet element |
Experiment
Capabilities
- Study of open-channel flow with and without sediment transport
- Observation of subcritical and supercritical flow
regimes
- Investigation of bed-load movement and sediment transport
- Analysis of fluvial obstacle marks, including scour and
siltation
- Measurement of flow velocity and depth profiles
- Determination of flow rate and sediment height along the
flume
- Visualization of flow patterns using contrast medium
Services
Required
- Mains Input:
220–240 V AC, 50 Hz
