Product Code : SCL-CELE-14157
Overview

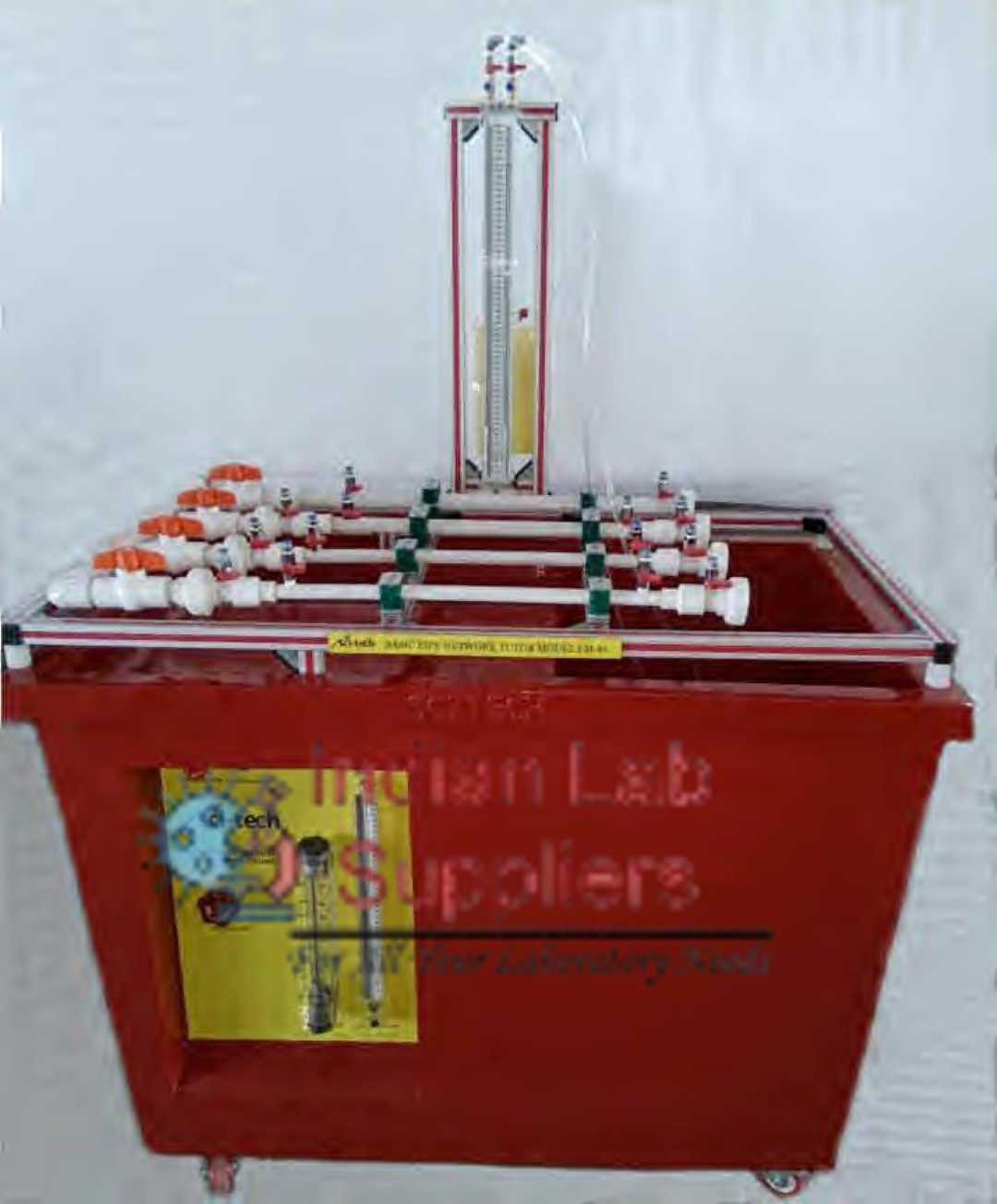

The Basic Pipe Network Tutor is a
versatile training system designed to study pressure losses and flow
behavior in various pipe network configurations. It allows students
to construct and analyze different types of pipe systems — including series,
parallel, and ring circuits — to observe real-world hydraulic behavior and
validate theoretical laws.
By drawing analogies between hydraulic and
electrical systems (pressure = voltage, flow rate = current, resistance =
pressure loss), the apparatus helps users understand network analysis
principles similar to Kirchhoff’s Laws. The unit features plastic
pipes, interchangeable fittings, control valves, and two-tube
manometers for precise measurement of pressure losses in different
arrangements.
The system includes a closed water circuit,
supply tank, pump, and measuring tank, providing a
self-contained and safe experimental setup suitable for laboratory use.
Key
Features
- Enables setup of series, parallel, and combined pipe networks
- Study of pressure losses across various fittings, valves,
and bends
- Analogous demonstration of
Kirchhoff’s laws using hydraulic principles
- Modular pipe mounting board for
flexible network design
- Closed water circulation system with integrated supply and
measuring tanks
- Accurate pressure and flow measurement with mercury and
water manometers
- Transparent layout and compact, mobile design for classroom
or lab environments
Experimental
Capabilities
|
No. |
Experiment Description |
|
1 |
Calibration of individual pipe sections: pressure loss vs. flow rate |
|
2 |
Study of parallel pipe configurations (open/closed) |
|
3 |
Study of series pipe configurations |
|
4 |
Analysis of combined series–parallel systems |
|
5 |
Investigation of a ring circuit (supply network) |
|
6 |
Differential pressure measurement |
|
7 |
Pressure losses in fittings such as bends, elbows, and valves |
System
Components
|
Component |
Description |
|
Panelboard |
Mounting surface for pipe network assembly |
|
Pipes & Fittings |
Plastic pipes of various diameters with connectors |
|
Control & Gate Valves |
For adjusting flow and simulating different network conditions |
|
Supply Tank |
170 L stainless steel tank for closed water circulation |
|
Sump/Measuring Tank |
10 L and 40 L tanks for flow measurement with level indication |
|
Rotameter |
For measuring flow rate through the system |
|
Pump |
Centrifugal type, 550 W motor |
|
Pressure Measurement |
Water and mercury manometers (2-tube type) |
|
Pressure Meter |
For additional monitoring of system pressure |
|
Pump Starter & Control Panel |
Includes switches and safety provisions |
|
Frame Construction |
Powder-coated M.S. frame with mobility and durability |
Technical
Specifications
|
Parameter |
Specification |
|
Pump Power |
550 W |
|
Maximum Head |
11 m |
|
Maximum Flow Rate |
12 m³/h |
|
Pipe-Work Capacity |
4.8 m³/h |
|
Supply Tank Capacity |
170 L |
|
Measuring Tank Capacity |
10 L (small range) / 40 L (large range) |
|
Pipe Sections |
Length: 700 mm each |
|
Pipe Diameters |
Ø25×1.9 mm (1x), Ø20×1.5 mm (2x), Ø16×1.2 mm (2x) |
|
Manometer Ranges |
Mercury U-tube: ±1360 mbar; Water manometer: 0–100 mbar |
|
Volumetric Flow Range |
0–10 L / 10–40 L with level indication |
|
System Dimensions (L×W×H) |
1800 × 800 × 1600 mm |
|
Approx. Weight |
160 kg |
Services
Required
|
Service |
Specification |
|
Electrical Supply |
230 V AC, 50 Hz, single phase |
|
Water Supply |
Clean water for circulation and refill (closed loop) |
