Venturimeter & Orificemeter Calibration Set-up Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14093

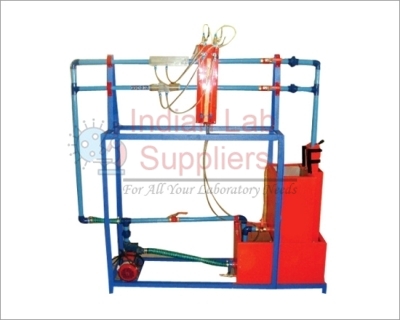

This experimental apparatus is specifically designed for the comparative study and calibration of two essential differential pressure flow meters: the Venturimeter and the Orificemeter. The setup integrates both meters in a parallel configuration emerging from a common manifold, allowing for the operation and flow regulation of either one via dedicated downstream valves. The system functions as a self-contained water re-circulating unit, utilizing a centrifugal pump and sump tank . Crucially, pressure tapings from both flow meters lead to a differential manometer to accurately measure the pressure drop (head loss), while the actual flow rate is determined volumetrically using a measuring tank and stop watch. The core educational purpose is the determination of the Coefficient of Discharge (Cd) for each meter and their use as practical flow measurement tools.

Objectives: Flow Measurement and Calibration

Objective	Key Metric Investigated	Application in Fluid Systems
Determine the Coefficient of Discharge (Cd) through Venturimeter and Orificemeter	Calibration Constant	Quantifying the ratio of actual discharge to theoretical discharge for each meter.
Measure discharge through Venturimeter and Orificemeter as flow meters	Volumetric Flow Rate (Q)	Practical application of the calibrated meters to determine the unknown flow rate in a pipeline.

Technical Specifications: Differential Flow Meter Apparatus

Component	Parameter / Specification	Value / Feature
Flow Meters	Venturimeter Material	Clear Acrylic, Compatible to 1 inch Dia pipe
Flow Meters	Orificemeter Material	Clear Acrylic, Compatible to 1 inch Dia. Pipe
Pressure Measurement	Device	Differential Manometer (not explicitly listed but required by description)
System Tanks	Material	Stainless Steel
Flow Measurement	Measuring Tank Capacity	25 Liters
System Storage	Sump Tank Capacity	50 Liters
Water Circulation	Pump Type and Make	FHP Pump, Crompton / Sharp make
Timing	Stop Watch	Electronic
Utilities	Electricity Supply	Single Phase, 220 VAC, 0.5 kW
