Radial Fan Test Apparatus Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14186

Overview

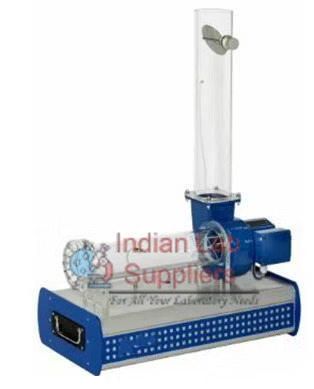

The Radial Fan Test Apparatus is designed to study the operating behavior, performance characteristics, and efficiency of radial (centrifugal) fans under controlled laboratory conditions. It allows students to analyze the relationship between flow rate, pressure difference, power consumption, and efficiency for fans with different blade geometries.

Radial fans are widely used for transporting gases at moderate pressure differences. The air enters axially at the center of the fan impeller, is redirected by 90°, and exits radially. The experimental setup includes a radial fan driven by a three-phase AC motor with variable speed control via a frequency converter.

Transparent intake and delivery ducts allow direct observation of flow patterns. A throttle valve at the delivery side enables controlled variation of airflow, while interchangeable forward-curved and backward-curved rotors make it possible to compare the effects of blade geometry on fan performance.

Pressure, temperature, and flow rate are precisely measured using an integrated microprocessor-based data acquisition system, with optional software for visualization and analysis via USB connection. Comprehensive instructional material is provided for experiment setup, execution, and data evaluation.

Key Features

• Study of functioning and performance of a radial (centrifugal) fan.
• Radial fan with variable speed controlled via frequency converter.
• Transparent intake and delivery pipes for visual observation of flow.
• Throttle valve at the delivery side to adjust airflow rate.
• Two interchangeable rotors:
• Forward-curved blades.
• Backward-curved blades.
• Guide vanes and flow straighteners in the intake section for improved flow uniformity.
• Microprocessor-based measurement system for real-time data acquisition.
• Digital display of key parameters: differential pressure, flow rate, temperature, fan speed, electrical and hydraulic power, and efficiency.
• Software-supported experiments with optional PC connectivity (USB).
• Comprehensive Operation and Maintenance Manual included.

Technical Specifications

Experiment Capabilities

1. Determination of operating behavior and characteristic variables of a radial fan.
2. Recording fan characteristic curves (differential pressure vs. flow rate).
3. Study of the effect of rotor speed on pressure, flow rate, and efficiency.
4. Comparison of performance for forward- and backward-curved rotor designs.
5. Determination of hydraulic power output, input power, and overall efficiency.
6. Observation of flow stabilization and turbulence reduction through intake straighteners.

Educational Objectives

• Understand the principle of operation of radial (centrifugal) fans.
• Evaluate fan characteristic curves and their dependence on speed and geometry.
• Measure and analyze pressure, flow rate, and efficiency relationships.
• Compare forward- and backward-curved blade designs for performance optimization.
• Gain practical experience with fan instrumentation, measurement, and data logging.

Required Services

• Electrical Supply: 220–240V AC, Single Phase, 50 Hz

Applications

• Ideal for Fluid Mechanics, Thermal Engineering, and HVAC Systems studies.
• Suitable for undergraduate and postgraduate laboratories in Mechanical, Aeronautical, and Energy Engineering.
• Provides a hands-on understanding of fan performance, flow behavior, and energy conversion principles.
