Product Code : SCL-CELE-14187
Overview

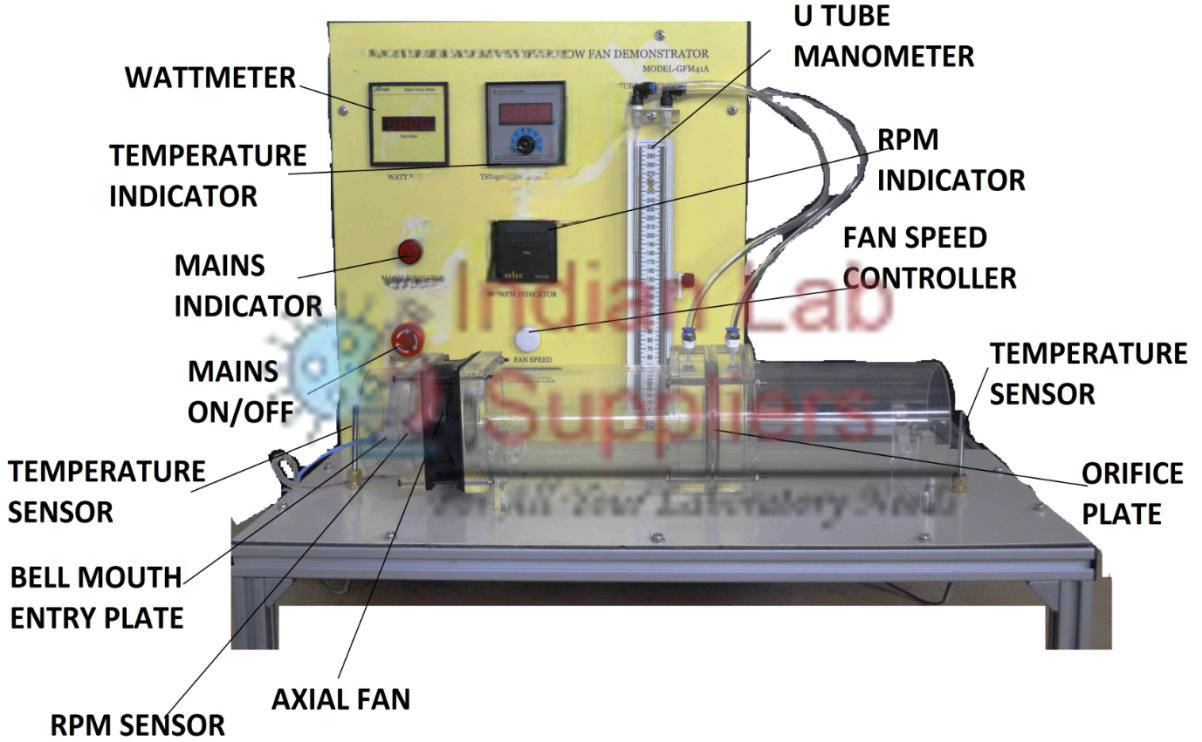

The Axial Fan Test Apparatus is
designed to study the performance characteristics and operating behavior of
axial (propeller-type) fans. The unit enables students to investigate the
relationships between flow rate, pressure difference, rotational
speed, and efficiency, as well as the overall performance curve of
the fan under various operating conditions.
In an axial fan, air is drawn axially
through the intake section and discharged axially through the fan rotor.
The apparatus features an electronically commutated drive motor with variable
speed control, allowing smooth adjustment of airflow velocity. Both the intake
and delivery pipes are made from transparent material, providing
clear visualization of the flow and internal components.
The system incorporates guide vanes and
a flow straightener in the intake section to minimize turbulence and
ensure accurate measurement, even at low speeds. A throttle valve is
provided at the delivery end to control the airflow rate. The apparatus is
equipped with microprocessor-based measuring instrumentation to monitor
and display parameters such as differential pressure, temperature, flow
rate, power consumption, and efficiency.
For advanced laboratory applications, the unit
can be supplied with computer-based data acquisition and PID control
software, allowing real-time monitoring, process control, data storage, and
graphical visualization of results.
Key
Features
- Fully instrumented axial fan test system for studying fan performance characteristics.
- Electronically commutated DC drive motor with variable speed control.
- Transparent intake and delivery pipes for clear visualization of flow.
- Flow straightener and guide vanes
ensure laminar, uniform airflow.
- Throttle valve on
delivery side for precise flow adjustment.
- Microprocessor-based digital measurement system for accurate and stable readings.
- Measurement and display of:
- Differential pressure
- Flow rate
- Rotational speed
- Temperature
- Electrical power consumption
- Hydraulic power output
- Overall efficiency
- Data acquisition software for
real-time monitoring, visualization, and control via USB.
- Comprehensive operation and maintenance manual supplied.
Technical
Specifications
|
Component |
Specification |
|
Axial Fan |
Power: 90 W; Nominal speed: 7000–9500 rpm; Max. flow rate: 400–600
m³/h; Max. differential pressure: ~700 Pa |
|
Drive Motor |
Electronically commutated motor with integrated variable speed
controller |
|
Intake Pipe |
Inner diameter: 115 mm; Length: 275 mm; Transparent |
|
Delivery Pipe |
Inner diameter: 110 mm; Length: 310 mm; Transparent |
|
Flow Control |
Throttle valve at delivery side |
|
Instrumentation (Base Unit) |
Differential pressure (U-tube manometer), flow rate, speed, power,
temperature, efficiency |
|
Instrumentation (Optional DAQ System) |
Speed sensor (0–7000 rpm), differential pressure sensor (-2 to +2 in.
H?O), absolute pressure sensor (0–1.1 atm), “J”-type temperature sensor,
humidity sensor (0–100%), digital wattmeter |
|
Measuring Ranges |
Flow rate: 0–1000 m³/h; Temperature: 0–100 °C; Electrical power: 0–500
W |
|
Software (Optional) |
SCADA-based computer interface for PID control, data acquisition, and
real-time process visualization |
Optional
Computer-Controlled System
The optional PC-based control and data
acquisition module allows advanced analysis and process control. Features
include:
- SCADA software for
data logging, visualization, and control.
- Real-time PID control with
user-adjustable proportional, integral, and derivative constants.
- Automatic and simultaneous recording of all process variables.
- Real-time graphing of
system response and comparative analysis.
- High-speed sampling up to
250 kS/s.
- Multi-user classroom visualization on projector or whiteboard (up to 30 students).
- Teacher/student access levels and
open software structure for educational customization.
- Built-in safety features:
mechanical, electronic, and software-based protection systems.
Experiment
Capabilities
- Determination of operating characteristics of an axial fan.
- Recording fan characteristic curves (pressure vs. flow rate).
- Study of rotor speed effects on pressure, flow rate, and
stall behavior.
- Determination of hydraulic power output and fan
efficiency.
- Comparison of theoretical and experimental performance data.
- Optional: Real-time PID control and process monitoring
through data acquisition software.
Educational
Objectives
- Understand the working principle and performance
characteristics of axial fans.
- Learn to measure and interpret fan characteristic curves.
- Analyze relationships among speed, pressure, and flow rate.
- Evaluate energy conversion efficiency and losses in
fan operation.
- Gain experience with modern instrumentation and data acquisition
techniques.
Required
Services
- Electrical Supply:
220–240 V AC, Single Phase, 50 Hz
Applications
- Ideal for Fluid Mechanics, Thermodynamics, and HVAC
Engineering laboratories.
- Suitable for undergraduate and postgraduate studies in Mechanical,
Aeronautical, and Energy Engineering.
- Provides hands-on experience in fan testing, performance
evaluation, and flow dynamics.
