Potential Flow Demonstrator Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14115

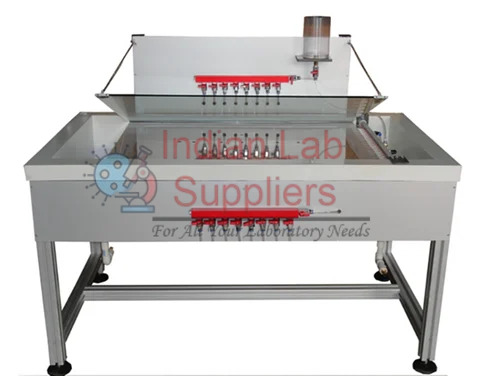

This apparatus, the Tesca Potential Flow Demonstrator, is an experimental unit used to study two-dimensional, inviscid potential flow, which serves as an excellent approximation for the flow of ideal fluids. The core element is a Hele-Shaw cell, which creates laminar flow by having water move at a low velocity through a narrow, 5 mm gap between two parallel glass plates. This parallel flow is irrotational and non-viscous, making it suitable for demonstrating potential flow concepts.

The principle is based on the Laplace equation, allowing the demonstration of analogies between potential flow and other physical systems like current flow, heat flow, and magnetic flux. Streamlines are made visible by injecting a contrast medium (ink) into the water.

Technical Specifications: Hele-Shaw Cell and Components

Component	Parameter / Specification	Detail / Value
Hele-Shaw Cell	Construction	Two parallel glass plates with a narrow 5 mm gap.
Glass Plates	Dimensions	Length x Width: 910 mm x 585 mm.
Sources/Sinks	Connections	Eight cross-shaped water connections in the bottom plate.
Models Supplied	Drag Bodies	Cylinder, square, rectangle, guide vane profile (6 total).
Models Supplied	Cross-Section Changes	2 models for sudden contraction or enlargement.
Model Material	Type and Thickness	Rubber, 5 mm thickness.
Contrast Medium Injection	Nozzles and Tank	19 injection nozzles, 200 mL tank for ink.
Flow Medium	Type	Water and ink (contrast medium).
Control	Valves	Adjusts flow velocity, source/sink inlet/outlet, and contrast medium dosage.
Requirements	Water and Drain	Water connection 300 Liters/hour, drain required.

Experimental Objectives and Features

Feature / Objective	Principle Demonstrated	Key Applications
Visualization of Streamlines	Laminar, two-dimensional flow using contrast medium.	Observation of flow patterns around bodies.
Flow Around Models	Flow around cylinder, guide vane profile, square, rectangle.	Demonstrating effects of body shape on streamlines.
Flow-Through Models	Nozzle contour, sudden contraction, or enlargement.	Analyzing internal flow dynamics and flow separation.
Modeling Flow without Models	Overlaying parallel flow with sources and/or sinks.	Demonstration of theoretical constructs like Rankine half-bodies and dipoles.
Potential Flow Analogy	Systems described by the Laplace equation.	Demonstrating analogy with current, thermal, and magnetic flows.
