Particle Drag Coefficient Apparatus Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14140

I. Overview and Purpose

This apparatus is designed to enhance student understanding and practical study of two fundamental concepts in fluid mechanics :

II. Apparatus Description

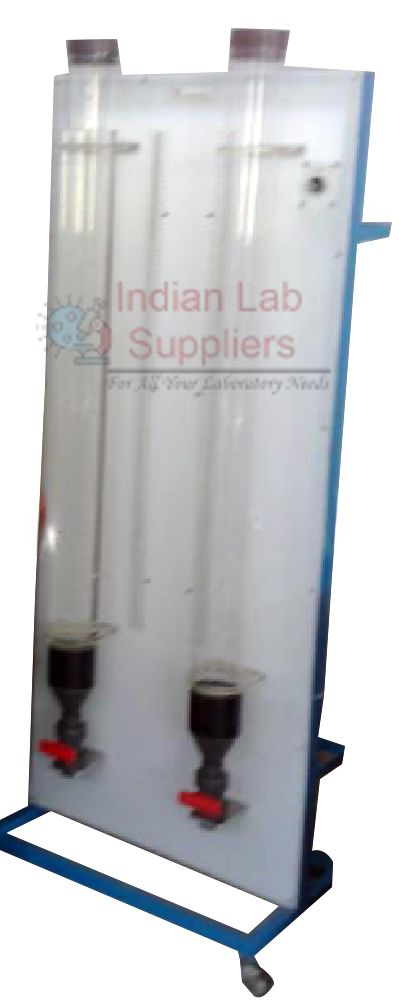

The unit features two precision bore glass tubes mounted vertically on a wall-mounting frame.

Visualization A back light source using three LED tube lights is provided behind a milky white acrylic panel.¹ This ensures easy and clear visualization of the sphere or particle as it falls through the liquid.
Operation Students place a test sphere or particle onto the top of the tube, allow it to fall freely through the liquid, and use a stopwatch to measure the time taken to traverse a specified distance.
Recovery A simple valve system is located at the bottom of the tube, allowing for easy removal and recovery of the falling sphere or particle after each test.

III. Technical Specifications

Component	Feature or Specification	Detail
Glass Tubes	Dimensions	93 mm inner diameter, 103 mm outer diameter, 1.3 meter length (Other diameters optional)
Backlight	Source	3 LED Tube Lights
	Panel	Milky White Acrylic
Valve System	Location	Bottom opening valve for particle removal
Test Spheres	Material/Set	Stainless Steel (SS)
	Diameters	5, 10, 15, 20, and 25 mm
	Accessories	Balls with ball gauge and case
Test Samples	Shape	Streamline shape test samples (2 provided)
Instrumentation	Required	Stopwatch
	Beakers	Two plastic beakers, 0.50 liter capacity each
Viscosity Range	Measuring Range	0.6 to 70000 mPas
	Measuring Time Range	30 to 300 seconds
Accuracy	Relative Error	0.5 to 2 percent
Temperature	Operating Range	-60 to +150 degrees C
Measurement	Measuring Distance	100 mm
	Required Substance Volume	40 ml
Dimensions (W x D x H)	Unit Size	205 mm x 185 mm x 315 mm

IV. Experiments

The apparatus facilitates the following laboratory exercises:

Determine the drag coefficient of various spherical particles.
Determine the viscosity of a liquid (using Stokes Law).
Determine the drag coefficient of various shaped particles (using the provided streamline shape test samples).
