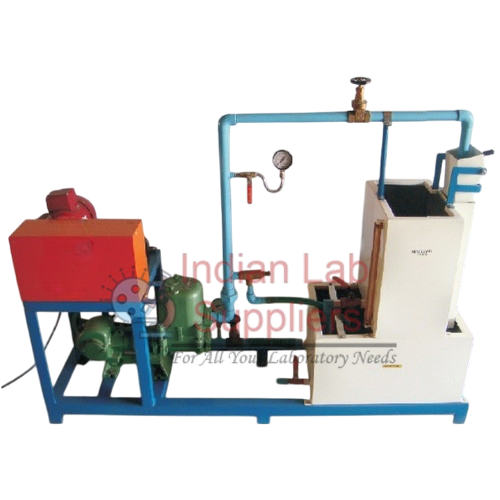

Reciprocating Pump Test Setup Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14108

This experimental apparatus is designed for the study and performance testing of a Reciprocating Pump (a positive displacement machine). The setup features a Double acting, single Cylinder pump coupled with an electrical motor, operating on a closed-loop water circulation system. Measurement of the total hydraulic head is achieved using Pressure and Vacuum Gauges connected to the delivery and suction sides of the pump. The flow rate (Discharge) is determined volumetrically using a measuring tank fitted with a piezometer tube and scale, in conjunction with an electronic stop watch. The primary goal is to determine the pump's efficiencies and map its characteristic performance curves.

Objectives: Reciprocating Pump Performance Testing

Objective	Key Metric Investigated	Application in Positive Displacement Pumps
To determine overall efficiency and pump efficiency of the Reciprocating Pump	Overall Efficiency etaoverall, Pump Efficiency pump	Quantifying the ratio of hydraulic output power to shaft power (pump) and to electrical input power (overall).
To plot Head vs. Discharge, Pump efficiency vs. Discharge	Characteristic Curves (H-Q, eta Q	Mapping the relationship between the total Head and the flow rate, and how pump efficiency varies with flow.

Technical Specifications and Features: Reciprocating Pump Test Rig

Feature / Component	Parameter / Specification	Detail / Value
Pump	Type and Capacity	Double acting, single Cylinder, 1 HP.
Pump Performance	Speed and Head (max.)	250 RPM (max.), 5 Kg/cm$^2$ (max.).
Drive	Type	AC Motor with step cone pulley OR DC Motor with DC Drive and Digital RPM Indicator.
Supply Tank	Capacity	70 Liters.
Measuring Tank	Capacity and Feature	50 Liters, fitted with Piezometer Tube and Scale.
Pressure Measurement	Gauges	Pressure and Vacuum Gauge on delivery and suction sides.
Features	Tanks/Wetted Parts	Stainless Steel tanks and wetted parts.
Utilities	Electric Supply	230 VAC, 50 Hz, Single Phase, 5 A socket.
Utilities	Water Supply	Tap water connection 1/2 inch BSP (Distilled water optional @ 80 Ltrs.).
