Rainfall Simulator Apparatus Manufacturer,Supplier and Exporter in India
.jpg)
Product Code : SCL-CELE-14155
Description

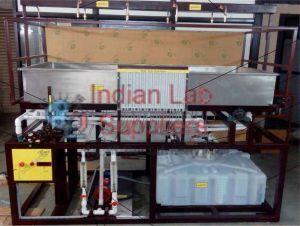

The Rainfall Simulator Apparatus is a self-contained
floor-standing system designed for laboratory studies in hydrology, soil
erosion, infiltration, and surface runoff analysis. It provides a controlled
and repeatable rainfall environment, eliminating the unpredictable
variability of natural rain.
The apparatus enables users to perform
detailed investigations into soil erosion, infiltration rates, surface
runoff, and vegetation effects under simulated rainfall conditions. Water
from a storage tank is circulated via a centrifugal pump through flow
control valves and meters to stainless steel spray nozzles mounted on an
adjustable gantry.
A stainless-steel catchment tank with
transparent sight glass allows visual observation of soil behavior under
rainfall. The system supports both manual and computer-controlled (DAQ)
operation for real-time monitoring and data collection.
Key
Features
- Simulates rainfall in a controlled laboratory environment
- Eliminates dependence on natural rainfall for hydrological studies
- Adjustable rainfall intensity via flow control valves and nozzles
- Stainless-steel tank with tilting mechanism for slope
adjustment
- Optional Data Acquisition System (DAQ) for real-time
monitoring of flow and sediment
- Durable, corrosion-resistant construction for long-term academic
use
Experimental
Capabilities
|
No. |
Experiment Description |
|
1 |
Study of relative soil erosion under different plant densities |
|
2 |
Measurement of soil infiltration characteristics |
|
3 |
Analysis of erosion and runoff from upslope and downslope row crops |
|
4 |
Investigation of the protective effects of vegetation on soil loss |
|
5 |
Study of rainfall-runoff relationships under controlled rainfall
conditions |
Technical
Specifications
|
Parameter |
Specification |
|
Catchment Tank |
Stainless steel; available sizes: 1×1 m, 2×1 m, 3×2 m, or 6×2 m; depth
400–700 mm; tiltable via single/dual mechanical or hydraulic jacking system |
|
Rainfall System |
4 / 6 / 8 stainless-steel spray nozzles on adjustable height gantry |
|
Inlet Flow Measurement |
Dual flow meters (3 L/min and 5 L/min) |
|
Circulating Pump |
Centrifugal type; 0.5–2 HP, single or three-phase; pressure 2–8 bar;
head 6–12 m; flow rate 1800–2400 LPH |
|
Inlet System |
Stilled tank forming a river inlet |
|
Outlet Tanks |
Transparent acrylic tanks for measuring water and sediment discharge |
|
Manometer Bank |
10–20 tapping points connected to multi-tube manometer |
|
Drainage System |
Two French drains and two well points |
|
Sump Tank |
Stainless steel; connected to recirculating pump |
|
Permeable Medium |
Fine grade sand (2–5 mm), to be supplied locally unless otherwise
specified |
|
Sight Glass Chamber |
Transparent acrylic for soil visibility |
|
Frame Construction |
Rigid metal stand with corrosion-resistant finish |
|
Tilting Mechanism |
Manual or hydraulic jack-based inclination control |
|
Power Requirement |
230 V AC, 50 Hz, single phase |
|
Water Requirement |
Continuous supply of clean water |
System
Components
|
Component |
Description |
|
Metal Stand |
Supports the spray and tank assembly |
|
Water Sprinklers |
Stainless steel, adjustable nozzles |
|
Water Circulating Pump |
Provides controlled pressurized flow to nozzles |
|
Water Storage Tanks |
For supply and recirculation of water |
|
Flowmeter & Control Valve |
For precise flow regulation |
|
Horizontal Catchment Tray |
Mounted on the metal stand with sight glass enclosure |
Optional
Accessories
|
Accessory |
Description |
|
DAQ Version |
Real-time measurement of water and sediment runoff using 4 flow
sensors, 8 level sensors, and a LabView-based data logging system |
|
Sci-Cal Software |
Computer control interface for automated experiments |
|
Digital Sensors |
For pressure and flow monitoring |
|
Data Logging Software |
For real-time data visualization and analysis |
Operation
& Maintenance
A comprehensive Operation & Maintenance
Manual is supplied, containing:
- Theoretical background
- Operating procedures
- Detailed experimental setups and test results
- Standard calibration data
- Maintenance guidelines
Services
Required at Site
|
Service |
Specification |
|
Electrical Supply |
230 V AC, 50 Hz, single phase, with proper earthing |
|
Water Supply |
Pure, clean water for continuous circulation and periodic refilling |
