Product Code : SCL-CELE-14138

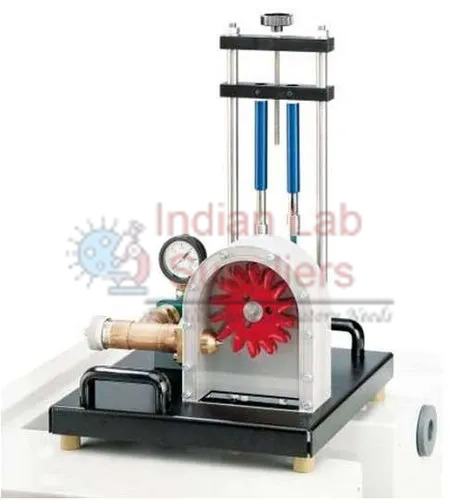

This is a functional model of an Impulse Turbine, commonly used for
educational demonstrations in mechanical or hydraulic laboratories. The
apparatus is designed with a transparent operating area to allow students clear
observation of the turbine in action.
The key operating principle of an Impulse Turbine is the conversion of
fluid pressure energy into kinetic energy within the distributor before the
fluid impacts the turbine wheel.
II. Technical Description
The unit consists of three main components assembled on a base plate:
- Impulse
Wheel (Runner)
- Adjustable
Needle Jet (Distributor)
- Housing
(transparent on one side)
The turbine is fitted with a braking band to apply load during
experiments. Water pressure can be monitored using a manometer integrated
directly into the unit.
III. Experimental Capability
The primary experiment conducted using this apparatus is:
- Determination
of typical turbine curves (e.g., efficiency vs. speed, power vs. flow
rate).
IV. Technical Specifications
|
Component |
Feature or Specification |
Detail |
|
Turbine Type |
Functional Model |
Impulse Turbine |
|
Performance (Approximate) |
Power Output |
5.6 W |
|
Conditions |
Volume flow rate V is approx. 30.7 L/min |
|
|
Head H is 2 m |
||
|
Rotational speed n is 500 rpm |
||
|
Impeller (Runner) |
External Diameter |
132 mm |
|
Vane Width |
33.5 mm |
|
|
Number of Vanes |
14 |
|
|
Nozzle (Distributor) |
Stream Diameter |
10 mm |
|
Instrumentation |
Pressure Measurement |
Integrated Manometer |
|
Loading |
Device |
Braking band |
|
Dimensions (L x W x H) |
Apparatus Size |
400 mm x 400 mm x 620 mm |
|
Weight |
Apparatus Weight |
Approximately 12 kg |
V. Scope of Delivery
The complete package includes:
- Turbine
with Braking Device, fully assembled on a base plate.
- Instruction
Manual (for operational and experimental guidance).
