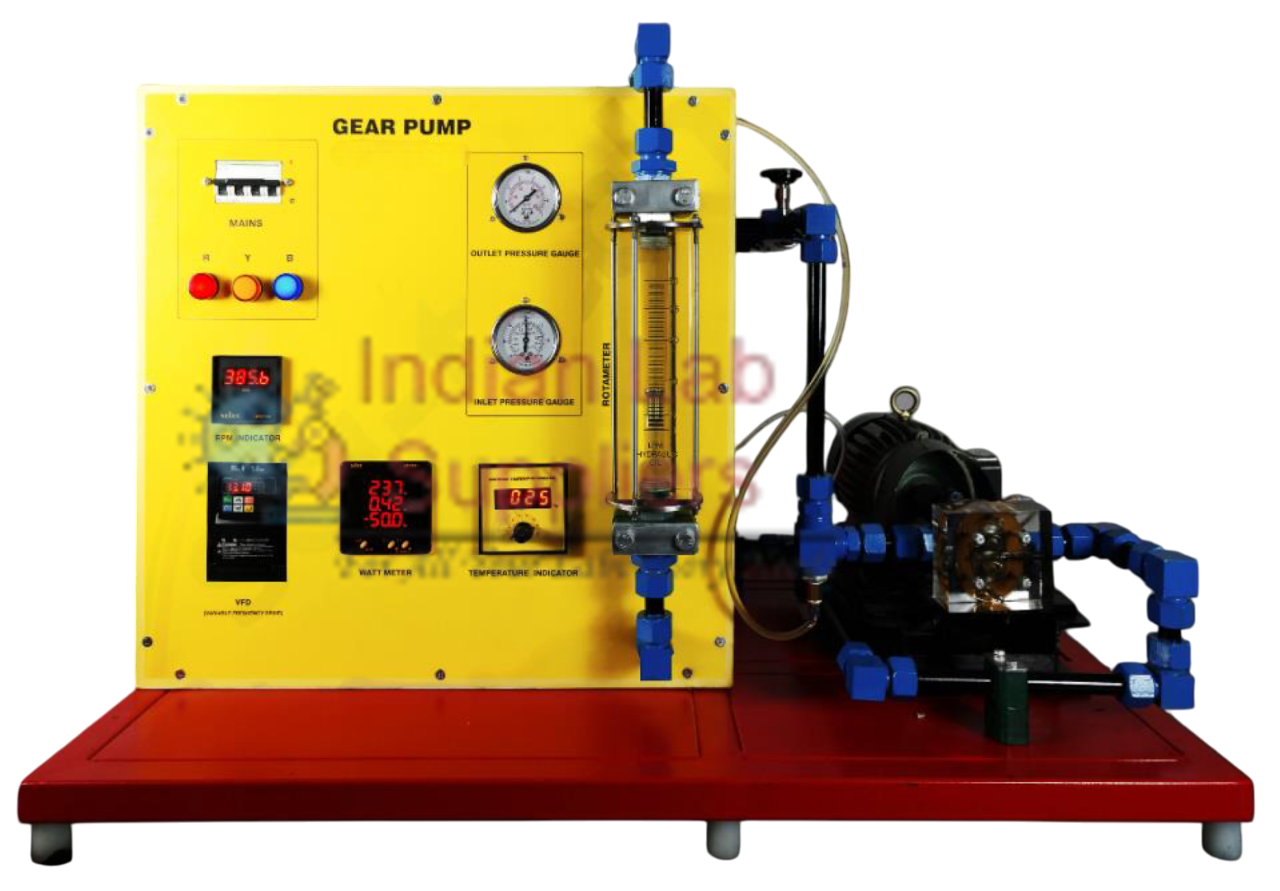

Gear Pump Test Apparatus Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14189

Overview

The Gear Pump Test Apparatus is an advanced experimental unit designed to demonstrate the operating principle, performance characteristics, and efficiency of a rotary-type positive displacement pump. The system utilizes a closed-loop oil circuit with a variable-speed gear pump, enabling the study of key parameters such as flow rate, head, pressure, and efficiency under controlled laboratory conditions.

Gear pumps deliver continuous, pulsation-free flow by means of two counter-rotating gears that transport fluid from the intake side to the discharge side. The medium is conveyed in the tooth spaces between the gears and the pump casing, resulting in a nearly uniform flow rate that increases linearly with speed.

The trainer features a transparent pump housing that allows direct visualization of gear operation, enhancing understanding of the pump’s internal mechanics. Flow rate and head can be precisely adjusted using a needle valve and overflow valve. The oval wheel flowmeter ensures high-accuracy measurement of viscous fluid flow rates.

Equipped with a microprocessor-based measuring system and data acquisition software, the apparatus provides real-time visualization, analysis, and recording of all parameters via USB interface.

Key Features

• Illustrative rotary-type positive displacement pump model.
• Closed oil circuit with transparent reservoir and gear pump.
• Transparent pump housing to observe internal gear motion.
• Variable-speed operation via frequency converter.
• Needle valve for precise flow rate control.
• Overflow valve for adjusting and limiting head pressure.
• Sensors for pressure and temperature on both intake and delivery sides.
• Oval wheel flowmeter for accurate volumetric flow measurement of viscous fluids.
• Microprocessor-based instrumentation with real-time data display.
• Optional software for data acquisition, visualization, and operation via PC (USB connection).
• Comprehensive instructional manual with theoretical background and guided experiments.

Technical Specifications

Optional Computer-Controlled Version

An optional computer-controlled model enhances functionality with advanced PID control and SCADA-based data acquisition.

Additional Specifications (Optional Model):

• Motor Power: 0.5 HP (0–1400 rpm), speed controlled via inverter.
• Discharge Pressure Sensor: 0–6.2 bar.
• Suction Pressure Sensor: -1 to 0 bar.
• Flow Sensor: 0–15 L/min.
• Measured Parameters: Pump speed, torque, discharge/suction pressure, total flow.
• Calculated Values: Total head, hydraulic power, mechanical power, overall efficiency.
• Software: ‘Sci-Cal’ SCADA-compatible software for control, monitoring, and analysis.

Software & Data Acquisition (Optional)

• PID Computer Control + Data Acquisition + Data Management.
• Fully compatible with modern Windows OS.
• Graphical and intuitive process simulation interface.
• Automatic recording and visualization of all process variables.
• Analog and digital PID control.
• Real-time data logging and trend visualization (up to 250 KS/s).
• Calibration system for all sensors.
• Real-time and post-process comparative analysis.
• Open software architecture with editable instructions and multi-user access (teacher/student levels).
• Supports classroom demonstration via projector or electronic whiteboard.

Control Interface (SCADA):

• Common interface compatible with multiple trainer modules.
• Process diagram displayed on the front panel.
• Computer-controlled actuation and monitoring of all parameters.
• Real-time PID tuning of proportional, integral, and derivative constants.
• Multi-level safety system: mechanical, electronic, and software-based protections.

Experiment Capabilities

1. Study of the principle of operation of a gear pump.
2. Recording of pump performance characteristics (flow rate vs. head).
3. Investigation of the relationship between head and speed.
4. Study of the effect of pressure limitation via overflow valve.
5. Determination of hydraulic, mechanical, and overall efficiencies.
6. (Optional) Dynamic visualization of pressure, flow, and torque behavior through SCADA system.

Educational Objectives

• Understand the construction and working mechanism of gear pumps.
• Analyze performance curves under varying operating conditions.
• Evaluate the influence of speed and pressure on flow and efficiency.
• Gain hands-on experience in instrumentation, control, and data acquisition for positive displacement pumps.
• Learn practical skills in pump testing and system calibration.

Required Services

• Electrical Supply: 220–240 V AC, 1 Phase, 50 Hz
