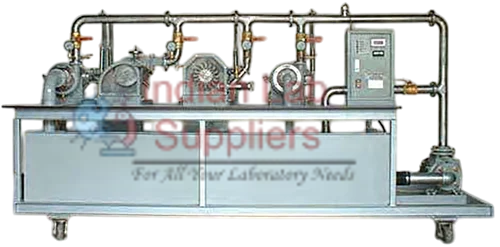

Turbine Set: Pelton, Francis, Kaplan Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14202

The Multi-Turbine Apparatus provides an in-depth study and comparison of three major types of water turbines — Pelton, Francis, and Kaplan — representing both impulse and reaction turbine principles.
The system allows investigation of turbine operating behavior, efficiency, and characteristic curves under various flow and load conditions.

Designed for educational and research applications, the unit demonstrates the conversion of water’s pressure and kinetic energy into mechanical power, and illustrates how turbine design affects performance. The setup integrates seamlessly with the Turbine Supply Unit and the Universal Drive and Brake Unit, which enable precise control of speed and torque for realistic testing scenarios.

Key Features

1. Comparison of impulse and reaction turbines – includes Pelton, Francis, and Kaplan types.
2. Constant speeds and torques adjustable via the Universal Drive and Brake Unit.
3. Transparent turbine housings for visual observation of operating areas.
4. Pelton Turbine (Impulse Type):
• Converts pressure energy into kinetic energy through a jet nozzle.
• Equipped with an adjustable nozzle needle to vary jet cross-section.
5. Francis Turbine (Reaction Type):
• Converts pressure and velocity energy in both control device and runner.
• Adjustable guide vanes for varying flow incidence angle.
• Additional pressure sensor at turbine outlet for performance measurement.
6. Kaplan Turbine (Axial Flow Reaction Type):
• Designed to study high flow and low head operation.
• Adjustable guide vanes for altering blade angle and turbine power.
• Eddy current brake for smooth, wear-free load application.
7. Closed water circuit with tank, submersible pump, and throttle valve for flow control.
8. Non-contact speed and torque measurement with digital display of all key parameters.
9. Digital instrumentation for flow rate, pressures, temperature, torque, and speed.
10. Optional Data Acquisition System (DAS) for real-time display, data logging, and graphical analysis via PC.

Technical Specifications

Optional Accessories

Data Acquisition System (DAS):

• PC with Windows-based software.
• Electronic signal conditioning and data acquisition modules.
• Real-time monitoring of parameters: flow rate, pressure, torque, speed, and temperature.
• Features:
• Supervisory Control and Data Acquisition (SCADA)
• Data Logging and Signal Analysis
• Real-Time Graphical Display
• Tabulated and Graphical Results
• Interactive Learning and Multimedia Simulation

List of Experiments

1. Comparison of impulse and reaction turbine performance.
2. Determination of mechanical power output and efficiency.
3. Recording of characteristic curves for Pelton, Francis, and Kaplan turbines.
4. Influence of nozzle cross-section on Pelton turbine power output.
5. Determination of power output vs. speed for various turbine types.
6. Measurement of hydraulic power and mechanical power.
7. Determination of turbine head and overall efficiency.
8. Investigation of vane position influence on Kaplan and Francis turbine efficiency.

Educational Objectives

• Understand and compare the working principles of impulse and reaction turbines.
• Study the energy conversion process from water flow to mechanical output.
• Measure and analyze performance characteristics of different turbine types.
• Learn to control and monitor turbine operation using modern instrumentation.

Services Required

• Electrical Supply: 220–240 V AC, Single Phase, 50 Hz.
• Water Supply: From integrated closed-circuit system (no external connection required).
