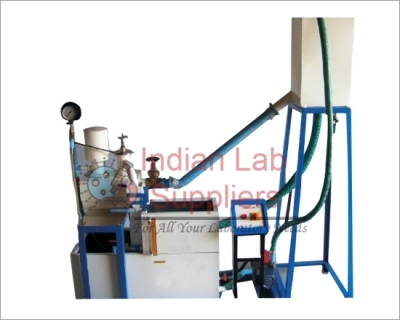

Hydraulic Ram Test Setup Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14110

The Hydraulic Ram (or Hydram) is a unique device used to pump a small quantity of water to a high head using the energy from a large quantity of water available at a low head. Its operation is based on the water hammer principle: when flowing water is suddenly stopped in a long pipe, a pressure wave travels along the pipe creating a powerful surge of pressure.

The experimental setup includes a pipe section fitted with a pulse valve and a non-return valve. Water flows from a supply reservoir connected to an overhead tank. An air vessel is situated above the valve chamber to smooth the cyclic fluctuations in the delivery line. The closing pressure of the pulse valve can be adjusted to change the operating characteristics of the Ram. The setup is self-contained with closed loop water circulation, and the flow rates of both the useful water (delivered to the high head) and the waste water are measured using two separate measuring tanks and an electronic stop watch.

Objectives: Hydraulic Ram Performance

Objective	Key Metric Investigated	Application in Water Systems
To find out discharge of useful water and waste water	Useful Discharge (Qu), Waste Discharge (Qw)	Quantifying the output and input flow rates of the ram for mass balance.
To find out the efficiency of the Hydraulic RAM	Ram Efficiency (eta)	Determining the ratio of hydraulic energy delivered (output) to the hydraulic energy supplied (input).

Technical Specifications and Features: Hydraulic Ram Apparatus

Feature / Component	Parameter / Specification	Detail / Value
Product	Type	Hydraulic RAM
RAM Size	Dimensions, Head	50 x 15 mm, Supply Head 2.5m, Delivery Head 10 m (max.).
Air Vessel	Capacity and Material	Suitable Capacity, MOC SS (Stainless Steel).
Delivery Line	Specifications	For RAM, Dia 50 mm, Length 6 m.
Pumping System	Pump Details	Capacity 1 HP, Crompton / Sharp / Hero make (used for supplying the initial head).
Tanks (SS)	Supply & Overhead Capacity	Supply Tank 150 Ltrs., Overhead Tank 100 Ltrs.
Measuring Tanks (2 Nos.)	Capacity and Feature	Suitable Capacity, MOC SS, one each for useful and waste, fitted with Piezometer Tube & Scale.
Pressure Measurement	Device	Bourdon Type Pressure Gauge.
Utilities	Electric Supply	230 VAC, 50 Hz, Single Phase, 5 A socket.
