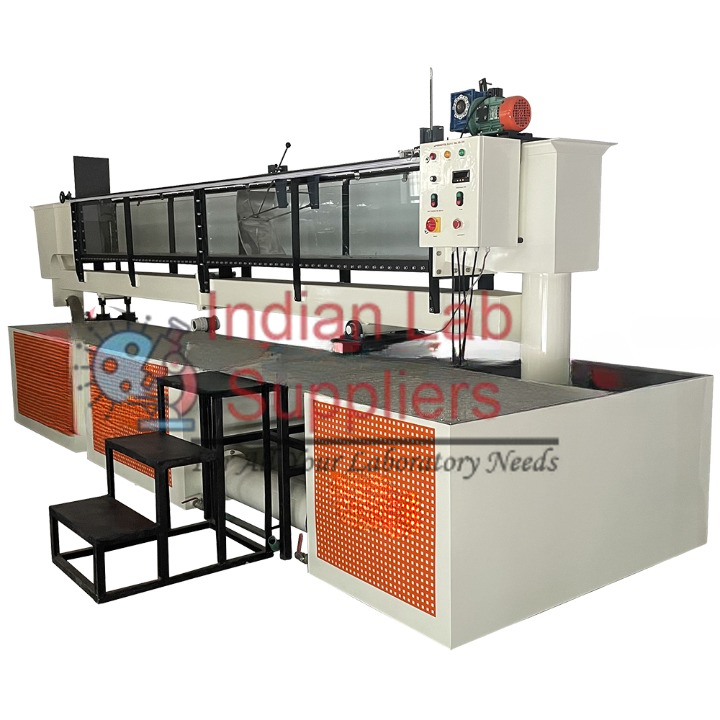

Experimental Flume (409 X 500mm) Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14079

This specialized hydraulic flume system, offering exceptionally long experimental sections (ranging from 5m up to 12.5m), is designed for advanced empirical investigation in open channel hydraulics and river engineering. The apparatus features a closed water circuit and precise inclination adjustment, providing the necessary control to model both steady and unsteady flow conditions across large scales. The extensive list of possible experiments underscores the flume's utility in validating classic flow formulae and characterizing complex phenomena, including flow transitions (like the hydraulic jump), energy dissipation mechanisms, and the performance of various control structures and flow-measuring devices.

Specifications: Large Hydraulic Flume Parameters

Parameter	Value / Feature	Unit
Experimental Section Lengths	5.0, 7.5, 10.0, or 12.5 (Available)	m
Hydraulic Circuit	Closed Water Circuit	-
Key Mechanism	Inclination Adjustment	-

Objectives: Advanced Open Channel and Transient Flow Experiments

Objective	Key Concept Investigated	Relevance and Application
Uniform and Non-Uniform Discharge	Steady Flow Regimes, Flow Resistance	Analysis of velocity and depth distribution under varying slope and roughness conditions.
Flow Formulae	Manning, Chezy, Chézy–Kutter	Empirical validation and calibration of coefficients for head loss and velocity prediction.
Flow Transition (Hydraulic Jump)	Critical Depth, Supercritical to Subcritical Flow	Investigation of the abrupt change in flow state and associated momentum principles.
Energy Dissipation	Hydraulic Jump, Stilling Basin Structures	Quantifying the energy loss mechanisms vital for protecting downstream structures from scour and erosion.
Flow over Control Structures: Weirs	Sharp-Crested, Broad-Crested, Ogee-Crested	Determining discharge coefficients (Cd) and understanding flow measurement and control devices.
Flow over Control Structures: Discharge Under Gates	Sluice Gate Flow, Contraction Coefficient	Analysis of flow control, pressure forces, and discharge characteristics through submerged and free outlets.
Flow-Measuring Flumes	Venturi Flumes, Parshall Flumes	Familiarization with and calibration of geometric structures used for highly accurate flow rate measurement.
Local Losses due to Obstacles	Minor Losses, Form Drag	Quantifying localized head loss caused by submerged piers, bridges, or other constrictions.
Transient Flow: Waves	Unsteady Flow Dynamics, Surges	Experimental study of the propagation, reflection, and attenuation of dynamic wave phenomena.
Vibrating Piles of Sediment Transport	Fluid-Structure Interaction (FSI), Scour	Combined study of flow around cylinders and the initiation and movement of bed material.
