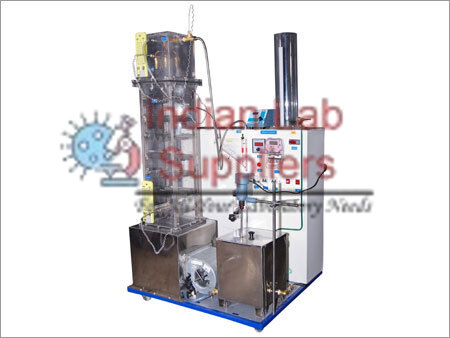

The Basic Water-Cooling Tower Apparatus
is designed to give students a practical understanding of the construction,
operation, and performance characteristics of a modern evaporative
cooling system. It serves as an ideal example of an open system
where two fluid streams — air and water — interact, resulting in both heat
and mass transfer.
The apparatus demonstrates cooling tower
principles clearly, enabling users to study the effects of different
parameters such as air flow rate, water flow rate, temperature,
cooling load, and packing density on system performance.
Built with industrial-grade components
and mounted on a powder-coated mild steel frame, the unit is self-contained,
easy to operate, and suitable for both demonstration and detailed
experimentation in heat transfer and thermal engineering laboratories.
Key
Features
- Mobile, compact, and sturdy design
- Transparent acrylic cooling tower for visual observation
- Complete instrumentation for performance study and analysis
- Demonstrates heat and mass transfer in an evaporative system
- Enables energy and mass balance experiments
- Optional fault trainer and computer-based data
acquisition system
- Industrial-quality components ensure long service life
System
Components
|
Component |
Description |
|
Cooling Tower |
Clear acrylic body, size 12” × 12” × 48” |
|
Centrifugal Pump |
½ HP motor-driven pump |
|
Axial Air Blower |
Adjustable air supply with speed regulator |
|
Heaters |
Electric hot water heaters for temperature control |
|
Temperature Measurement |
8-channel Digital Temperature Indicator |
|
Temperature Sensors |
RTD (Pt100) sensors for accurate readings |
|
Thermometers |
Dry and Wet Bulb Thermometers (2 Nos.) |
|
Make-up Water Tank |
For replenishing system water losses |
|
Rotameter |
For measuring water flow rate |
|
Blower Speed Regulator |
Variable air flow control |
|
Control Panel |
Electrical switches and indicator lamps |
|
Structure |
Powder-coated mild steel frame with castors |
Experiment
Capabilities
|
No. |
Experiment Description |
|
1 |
Demonstration of a complete cooling tower cycle |
|
2 |
Study of cooling tower performance under various operating conditions |
|
3 |
Analysis of mass and energy transfer between air and water |
|
4 |
Plotting of air properties and cooling process on a psychrometric
chart |
Parameters
That Can Be Studied
- Air flow rate
- Water flow rate
- Inlet and outlet water temperature
- Cooling load
- Packing density
Optional
Accessories
|
Accessory |
Description |
|
Fault Trainer |
For simulated system faults and troubleshooting practice |
|
Data Logging Software |
For real-time monitoring and analysis |
|
Multimedia Training Software |
For theory and system operation simulation |
|
Transparencies & Charts |
For classroom instruction and visualization aids |
Operation
& Maintenance Manual
A comprehensive Operation and Maintenance
Manual is provided, including:
- Detailed theoretical background
- Step-by-step operating procedure
- Standard results and performance calculations
- Maintenance and safety instructions
Services
Required at Site
|
Service |
Specification |
|
Electrical Supply |
220–240 V AC, 50 Hz, single phase, properly earthed |
|
Water Supply |
Continuous tap water supply |
|
Drainage |
Provision for proper water discharge |
