Zener Diode Apparatus (Socket Type) Manufacturer,Supplier and Exporter in India
-Photoroom (1).png)
Product Code : SCL-EAE-14652

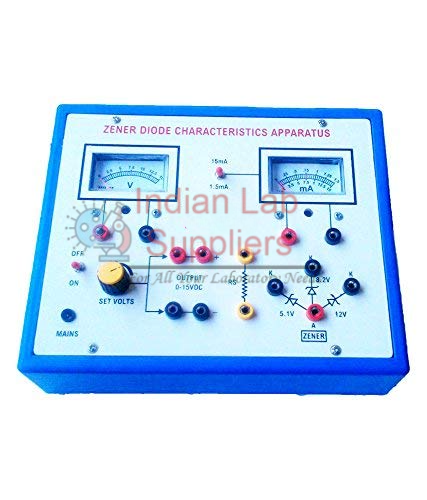

The Zener Diode Apparatus (Socket Type) is a well-designed educational instrument used to study the voltage–current (V-I) characteristics of a Zener diode in both forward and reverse bias.
The socket-type design allows students to easily insert and replace Zener diodes, making it a flexible and long-lasting teaching tool for physics, electronics, and engineering labs.
This apparatus is essential for understanding Zener breakdown, voltage regulation, reverse bias behavior, and semiconductor device characteristics.
Key Features
Socket-type Zener mounting for quick diode insertion
Clear circuit diagram printed on panel
Built-in variable DC power supply
High-quality voltmeter and ammeter for accurate reading
4 mm safety terminals for secure connections
Reverse and forward bias study options
Durable, student-friendly construction
Ideal for semiconductor and electronics practicals
Technical Specifications
- Zener Diode: 5.1V / 6.8V / 9.1V (interchangeable using socket)
- Power Supply:
- Variable DC supply: 0–12V
- Meters:
- Digital/Analog voltmeter (0–20V)
- Digital/Analog ammeter (0–100 mA)
- Terminals: 4 mm banana sockets
- Panel: Laminated educational circuit layout
- Protection:
- Overload protection
- Fuse support
- Enclosure: Metal/ABS body (institutional grade)
Applications
- Study of Zener diode V-I characteristics
- Observation of breakdown voltage
- Understanding reverse bias behavior
- Learning Zener as a voltage regulator
- Fundamental semiconductor device experiments
- Ideal for physics, electronics, ITI, diploma, B.Sc., and engineering labs
Why Choose Indian Lab Supplier for This Product?
Each unit is designed for precise readings and consistent performance essential for academic experiments.
Students can easily replace different Zener diodes, enhancing understanding and saving long-term costs.
Made using premium materials to withstand daily classroom usage.
More economical than imported products while matching or exceeding performance.
Quick maintenance, calibration support, and easy availability of spare diodes and meters.
Fulfills practical needs for:
- CBSE/ICSE Schools
- Polytechnic & ITI
- Engineering Colleges
- B.Sc Physics/Electronics labs
