Product Code : SCL-MDE-12428

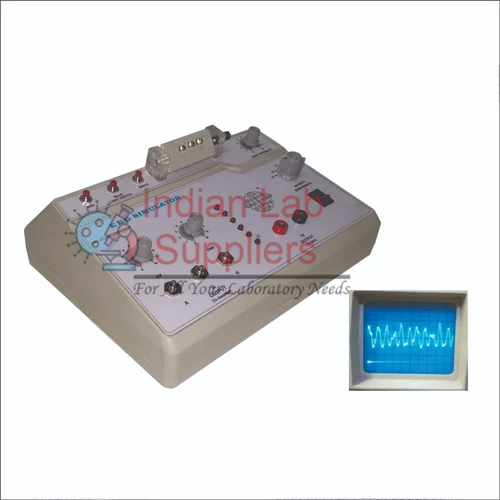

Indian Lab Suppliers offers the EEG Simulator Trainer Kit (Product ID: 12428) as part of its Medical Diagnostic Equipment range under Hospital Lab Equipment. This is a signal-generation instrument used for testing and calibrating EEG machines and for studying EEG signal-band patterns, and belongs alongside our ECG simulator line within the same test/calibration and training instrument family.
Quick Answer
This is an EEG Simulator trainer kit used for testing and calibrating EEG machines and for studying EEG signal patterns. It generates the standard EEG frequency bands – Delta, Theta, Alpha, Beta and Gamma – at an adjustable amplitude of 0 to 10mV, with normal or adjustable rhythm selection, differential output across A, G and R leads, and red/blue/white light stimuli to simulate eye activity, feeding into an amplifier, recorder, EEG monitor or DSO via a 2mm, 4mm or button-type output socket.
Key Features
EEG Simulator trainer kit for EEG machine testing & calibration · Generates standard EEG bands: Delta, Theta, Alpha, Beta, Gamma · Normal and adjustable rhythm selection · Adjustable amplitude, 0 to 10mV (approx.) · Differential output across A, G & R leads · Output socket: 2mm, 4mm or button type · Connects to an amplifier, recorder, EEG monitor or DSO · Red, blue & white light stimuli to simulate eye activity
Key Specifications
| Parameter | Specification |
|---|---|
| Application | Testing & calibration of EEG machines; study of EEG signal patterns |
| Rhythm bands | Delta (δ), Theta (θ), Alpha (α), Beta (β), Gamma (γ); normal and adjustable rhythm selection |
| Amplitude | Adjustable, 0 to 10mV (±) |
| Output | Leads A, G & R; differential output; socket type 2mm, 4mm or button |
| Compatible with | Amplifier, recorder, EEG monitor, or DSO |
| Eye-activity simulation | Red, blue & white light stimuli |
| Power supply | 250V / 50Hz |
| Dimensions | Approx. 250 x 75 x 250mm (±) |
| Standard accessories | Operating manual covering instrument working, operating & installation procedure, block diagrams, connection diagrams, electrode placement, standard signals & actual output signal, calculations, tables, troubleshooting, and an experiments list |
Where This Is Used
This simulator is intended for biomedical equipment repair centres, EEG machine manufacturers, and biomedical instrumentation training laboratories that need to test, calibrate or teach the fundamentals of EEG signal bands and eye-activity artefacts. It complements our ECG simulator line – the ECG Simulator Portable, ECG Simulator Table Model and ECG Arrhythmia Simulator (12L, 15A) – within the wider Medical Diagnostic Equipment range. Browse the full laboratory equipment range for related diagnostic and testing instruments.
Why Buy from Indian Lab Suppliers
Indian Lab Suppliers is an India-based laboratory equipment manufacturer and exporter supplying hospital and biomedical test/calibration equipment to institutions and distributors worldwide. Every order can be supplied with export documentation, and a Certificate of Origin is available on request to support customs clearance.
Frequently Asked Questions
What is this EEG simulator used for?
Testing and calibrating EEG machines, and studying EEG signal patterns across the standard frequency bands.
Which EEG bands does it generate?
Delta, Theta, Alpha, Beta and Gamma, with normal or adjustable rhythm selection.
What amplitude range is available?
An adjustable amplitude of 0 to 10mV (approx.).
What does the light stimulus feature simulate?
Red, blue and white light outputs simulate eye-activity artefacts commonly seen in EEG recordings.
What equipment can this connect to?
An amplifier, recorder, EEG monitor or DSO, via a 2mm, 4mm or button-type output socket.
Related Categories
Explore the full Medical Diagnostic Equipment category, part of our wider laboratory equipment catalogue.
Request a Quote
For pricing, lead time and export documentation, please contact us or submit your requirement through our lab tender page.
