Automatic Bus Washer Manufacturer,Supplier and Exporter in India
.jpg)
Product Code : SCL-SH-11936

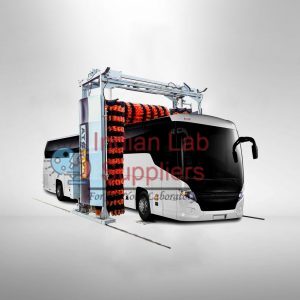

Indian Lab Suppliers supplies the Automatic Bus Washer (Product ID: 11936), listed within the Sanitation & Hygiene range under Water and Sanitation equipment. This is a roll-over gantry bus body-wash machine, not itself a sanitation or hygiene item.
Quick Answer
This automatic bus washer (Model ABW 4M) is a roll-over gantry with a 3-brush system (1 horizontal, 2 vertical) that washes buses up to 15000mm long, 2900mm wide and 4000mm high. It uses PLC control with HMI monitoring, contour-following brush movement, photo-sensor bus profile sensing, and safety features against belt breakage or loosening.
Key Specifications
| Parameter | Detail |
|---|---|
| Product ID | 11936 |
| Model | ABW 4M |
| Machine type | Roll Over Gantry |
| Application | Body wash - bus |
| Operating temperature | 5-50°C |
| Max bus length washable | 15000mm (approx. 49.2ft) |
| Max bus width washable | 2900mm (approx. 9.5ft) |
| Max bus height washable | 4000mm (approx. 13ft) |
| Water pump operating pressure | 2.5±0.5 bar |
| Shampoo pump operating pressure | 4.5±0.5 bar |
| Number of brushes | 3 (2 vertical and 1 horizontal), Polyethylene material |
| Control system | PLC, with HMI monitoring and push-button operation |
| Brush pressure sensing | Precise pressure sensing using power transducer |
| Horizontal brush movement | Contour following type |
| Bus profile/edge sensing | Photo sensor |
| Wash programs | 3 total |
| Water nozzles | 14 (10 side, 4 top) |
| Shampoo nozzles | 9 (6 side, 3 top), with electronically operated dosing pumps for precise shampoo dosing |
| Pump dry-run protection | Pressure switch |
| Input supply | 3-phase, 415V +10%/-15%, 50Hz ±5% |
| Total connected / max operational load | 4.45kW |
| Approx. weight | 2000kg |
| Safety features | Safety lock against brush fall due to belt breakage, sensor to detect belt loosening and belt cut, precise windscreen sensing to avoid damaging front extended mirrors, overlapping front/rear brushes to avoid dead spots |
Where This Bus Washer Is Used
This automatic bus washer suits bus depots, transport corporations and fleet operators needing a high-throughput automated wash for large vehicles. It is listed on Indian Lab Suppliers' site within the Sanitation & Hygiene product range, alongside vehicle-care equipment such as the Touchless Car Washer - Storm.
Why Buy from Indian Lab Suppliers
Indian Lab Suppliers is an India-based equipment manufacturer and exporter supplying this automatic bus washer alongside its broader Water and Sanitation catalog, with documentation such as a Certificate of Origin available on request for institutional and export orders.
Frequently Asked Questions
What size buses can this machine wash?
Up to 15000mm long, 2900mm wide and 4000mm high.
How many brushes does it use?
3 — 2 vertical and 1 horizontal, made of polyethylene.
How does it protect the windscreen and mirrors?
It precisely senses the windscreen to wash without damaging front extended mirrors, using photo-sensor bus profile/edge sensing.
What safety features are built in?
A safety lock against brush fall from belt breakage and a sensor that detects belt loosening or a belt cut.
Do you supply this bus washer for institutional or export orders outside India?
Yes. Indian Lab Suppliers quotes equipment for institutional and tender buyers across export markets — see the Tenders page for documentation requirements.
Related Categories
Sanitation & Hygiene · Water and Sanitation · Water Testing · Pump Riser Pipe · Water Treatment
Request a Quote
For pricing, bulk quantities or tender documentation on the Automatic Bus Washer, reach our team via Contact Us or submit your requirement through our Tenders page.
